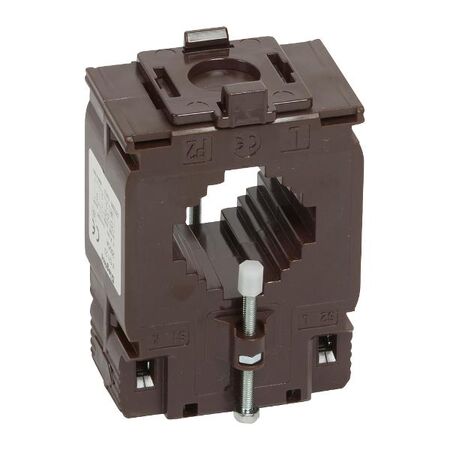

Single Phase Current Transformer | 250/5A Ratio | Bar Size 40.5x12.5mm | Legrand
Single phase current transformer with 250/5A transformation ratio and compatibility with 40.5x12.5mm and 32.5x20.5mm busbars—ideal for industrial and commercial energy management. Built for accurate current measurement and system protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Current Transformer - for 40.5x12.5 / 32.5 x 20.5mm Bar - Transformation Ratio 250/5A
Brand: Legrand
SKU: 412123
Alternatively Known As: Current Transformer, Phase Current Transformer
Technical Specifications
- Transformation Ratio: 250/5A
- Bar Size Compatibility: 40.5x12.5mm / 32.5x20.5mm
- Accurate current sensing for system protection.
- Dimensions (H x L x W): 13mm x 32mm x 40mm
- Weight: 0.5 kg
Key Features
- Compatible with 40.5x12.5mm and 32.5x20.5mm busbars.
- Transformation ratio of 250/5A for accurate current measurement.
Professional Installation Requirements
- Installation by a qualified electrician is recommended.
Applications
- Industrial: Machine monitoring and control systems
- Commercial: Energy management systems
Standards & Compliance
- Meets applicable Australian standards for electrical safety.
Environmental Benefits
- Energy usage optimized for effective performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Single Phase Current Transformer is available now for immediate purchase. Ideal for industrial and commercial energy management applications.
