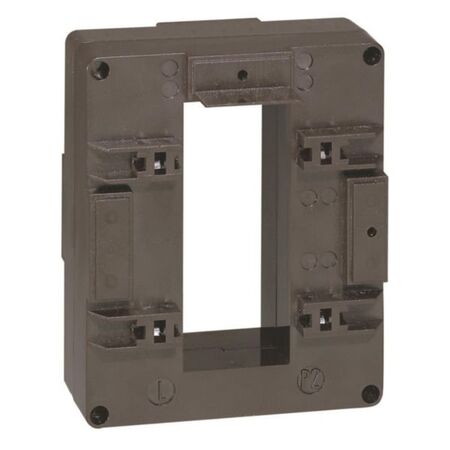

Single Phase Current Transformer | 2500/5 Transformation Ratio | 30 VA Power | Accuracy Class 0.5% | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 412152
$370.60 List price: $461.90
1 EA ($370.60 per EA)
+ −
30 Days Return Delivery Options
The Single Phase Current Transformer is designed for precise electrical current measurement, featuring a transformation ratio of 2500/5 and a rated secondary apparent power of 30 VA. Ideal for residential and small commercial electrical panels, this transformer ensures accurate energy management and is calibrated for reliable performance. With contact protection and screw terminal connections, it’s perfect for use with ammeters and electricity meters.
Technical Specifications
  • Model: Single-phase current converter
  • Rated primary current: 2500 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 30 VA
  • Power consumption: 30 W
  • Accuracy class: 0.5%
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • Contact protection: Yes
  • Secondary connection: Screw connection
  • Number of primary inputs: 1
  • Dimensions (H x L x W): 54mm x 80mm x 127mm
  • Weight: 1.2 kg
Key Features
  • Single-phase solid core current transformer
  • Transformation ratio 2500/5
  • Rated primary current: 2500 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 30 VA
  • Accuracy class 0.5%
  • Overcurrent limiting factor FS 5
  • Calibrated for precise measurement
  • Secondary connection via screw terminals
  • Contact protection included
  • Can be fixed on plate, EN 60715 rail, or bars
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper calibration.
Applications
  • Residential and small commercial electrical panels
  • Measurement and metering of electrical current
  • Use with ammeters, electricity meters, and multi-function measuring units
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables accurate energy measurement contributing to efficient energy management
  • Supports monitoring systems that help reduce energy waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.

Available Now

Available for immediate purchase, ideal for use in residential and small commercial electrical panels for precise current measurement.

F01960FR-03 (F01960FR-03.pdf, 753 Kb) [Download]

Guide Technique : EMDX³ transformateurs de courant (EXB20059_GT_EMDX3_Transformateurs_courant_FR.pdf, 2,895 Kb) [Download]

F01960EN-02 (F01960EN-02.pdf, 783 Kb) [Download]

Technical Guide: EMDX³ current transformers (EXB20060_TG_EMDX3_Current_transformers_EN.pdf, 2,912 Kb) [Download]

ex223001_0127 (ex223001_0127.pdf, 65 Kb) [Download]

ex223001_0128 (ex223001_0128.pdf, 67 Kb) [Download]
