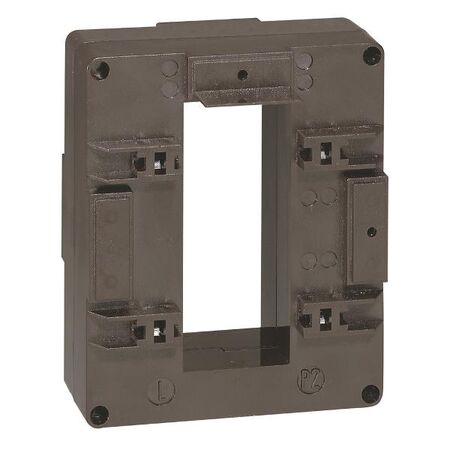

Single Phase Current Transformer | 800/5A Ratio | Bar Mount | 65x32mm by Legrand
Single phase current transformer with 800/5A transformation ratio and bar mount design—ideal for industrial and commercial energy management. Built for precise measurements, with compatibility for 65x32mm bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Current Transformer - for 65 x 32mm Bar - Transformation Ratio 800/5A
Brand: Legrand
SKU: 412138
Alternatively Known As: Current Transformer, CT, Single Phase Transformer
Technical Specifications
- Transformation Ratio: 800/5A
- Primary Current: 800A
- Secondary Current: 5A
- Rated Frequency: 50Hz
- Installation Type: Bar mount
- Dimensions (H x L x W): 32mm x 100mm x 65mm
- Weight: 1.2 kg
Key Features
- Designed for use with 65 x 32mm bars.
- Transformation ratio of 800/5A for accurate measurements.
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended for safety.
Applications
- Industrial: Equipment monitoring and control
- Commercial: Power factor correction
- General: Energy management systems
Standards & Compliance
- Complies with AS/NZS 61010 for electrical safety.
Environmental Benefits
- Enhances energy efficiency and reduces power losses.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Single Phase Current Transformer - for 65 x 32mm Bar - Transformation Ratio 800/5A is available now for immediate purchase. Ideal for industrial and commercial energy management applications.
