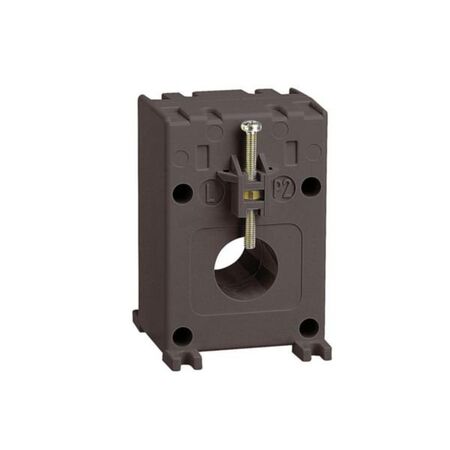

Single Phase Current Transformer CT 200/5 | 200A Primary Current | 5A Secondary Current | Accuracy Class 0.5 | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 412106
$100.40 List price: $125.10
+ −
30 Days Return Delivery Options
The Single Phase Current Transformer CT 200/5 is designed for precise measurement and metering of electrical current, featuring a transformation ratio of 200/5 and an accuracy class of 0.5. Ideal for residential and small commercial electrical panels, this transformer supports efficient energy monitoring and management, ensuring optimal power usage and compliance with safety standards.

Product Name/Title: Single Phase Current Transformer CT 200/5 | 200A Primary Current | 5A Secondary Current | Accuracy Class 0.5 | @EA of 1 | by Legrand

Brand: Legrand

SKU: 412106

Alternatively Known As: Current Transformer CT 200/5, Single Phase CT, Electrical Current Sensor, Legrand CT 412106

Technical Specifications
  • Model: Single-phase current converter
  • Rated primary current: 200 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 4 VA
  • Power consumption: 4 W
  • Accuracy class: 0.5
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • Contact protection: Yes
  • Height opening: 21 mm
  • Width opening: 21 mm
  • Opening diameter: 21 mm
  • Secondary connection: Screw connection
  • Number of primary inputs: 1
  • Dimensions (H x L x W): 70mm x 40mm x 50mm
  • Weight: 0.3 kg
Key Features
  • Single-phase solid core current transformer
  • Transformation ratio 200/5
  • Rated primary current: 200 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 4 VA
  • Accuracy class 0.5
  • Overcurrent limiting factor FS 5
  • Secondary connected by screw terminals or lugs
  • Can be fixed on plate, EN 60715 rail, or bars
  • Contact protection included
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper calibration.
Applications
  • Residential and small commercial electrical panels
  • Measurement and metering of electrical current
  • Use with ammeters, electricity meters, and multi-function measuring units
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables accurate energy monitoring to optimize power usage and reduce waste
  • Supports efficient electrical system management contributing to energy conservation
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

The Legrand Single Phase Current Transformer CT 200/5 is available for immediate purchase, ideal for residential and small commercial electrical metering applications.
