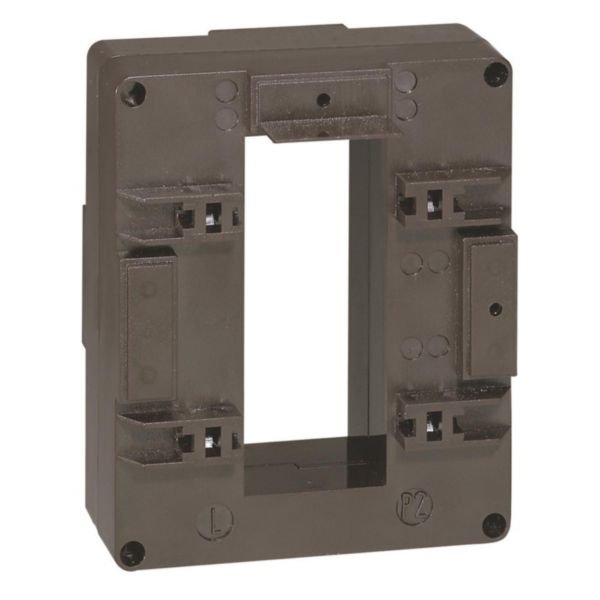

Single Phase Current Transformer CT 2000/5 | 2000A Primary Current | 5A Secondary Current | Accuracy Class 0.5% | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 412147
$370.60 List price: $461.90
+ −
30 Days Return Delivery Options
The Single Phase Current Transformer CT 2000/5 is designed for precise measurement in residential and small commercial electrical panels. With a transformation ratio of 2000/5 and an accuracy class of 0.5%, it ensures reliable current monitoring. Ideal for use with ammeters and electricity meters, this transformer features screw terminal connections and is calibrated for optimal performance.

Product Name/Title: Single Phase Current Transformer CT 2000/5 | 2000A Primary Current | 5A Secondary Current | Accuracy Class 0.5% | @EA of 1 | by Legrand

Brand: Legrand

SKU: 412147

Alternatively Known As: Single Phase CT 2000/5, Current Transformer 2000/5, Legrand CT for 127x38mm bar, Electrical Current Transformer

Technical Specifications
  • Model: Single-phase current converter
  • Rated primary current: 2000 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 15 VA
  • Power consumption: 15 W
  • Accuracy class: 0.5%
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • Contact protection: Yes
  • Secondary connection: Screw connection
  • Number of primary inputs: 1
  • Dimensions (H x L x W): 50mm x 150mm x 130mm
  • Weight: 1.2 kg
Key Features
  • Single-phase solid core current transformer
  • Transformation ratio 2000/5
  • Rated primary current: 2000 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 15 VA
  • Accuracy class 0.5%
  • Overcurrent limiting factor FS 5
  • Calibrated for precise measurement
  • Secondary connection via screw terminals
  • Can be fixed on plate, EN 60715 rail, or bars
  • Contact protection included
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper calibration.
Applications
  • Residential and small commercial electrical panels
  • Used with ammeters, electricity meters, and multi-function measuring units
  • Measurement and metering of electrical current in single-phase systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables accurate energy measurement contributing to efficient energy management
  • Supports monitoring systems that help reduce energy waste
Warranty Information

Standard manufacturer warranty applies, typically 1 year against manufacturing defects.

Available Now

The Legrand Single Phase Current Transformer CT 2000/5 is available for immediate purchase, ideal for residential and small commercial panel metering applications.
