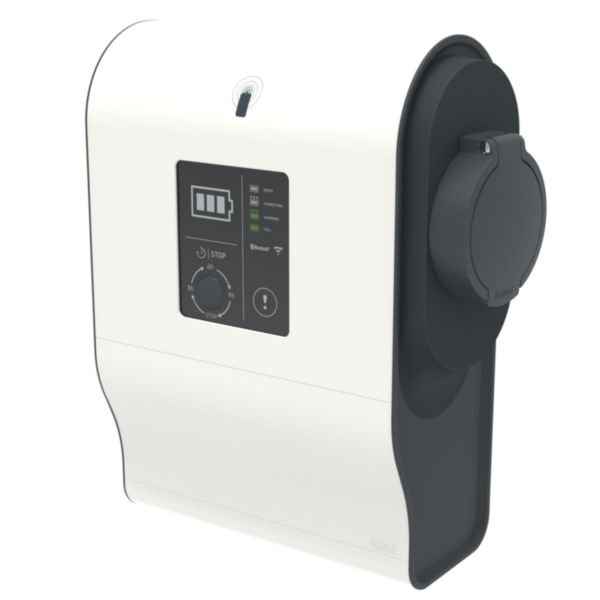

Single-phase Green'up Premium EV Charging Station | 3.7kW to 4.6kW | IP44 Rated | RFID Access Control | @EA of 1 | by Legrand
The Single-phase Green'up Premium EV Charging Station is designed for efficient electric vehicle charging, offering adjustable power from 3.7kW to 4.6kW and current settings between 16A and 20A. Ideal for both residential and commercial applications, this charging station features IP44 protection against water splashes and an embedded RFID reader for secure multi-user access. With remote control capabilities and Bluetooth communication, it ensures a seamless charging experience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal connection power: 3.7 kW
- Maximum power per charging point: 4.6 kW
- Single-phase installation
- Number of charging units: 1
- Socket outlet Type 2: 1
- Housing material: Plastic
- Degree of protection: IP44
- Impact strength: IK08
- Operating temperature: -25°C to 50°C
- Storage temperature: -25°C to 70°C
- Nominal voltage: 220-240 V
- Communication: Bluetooth, Modbus, Network, WiFi, OCPP 1.6J
- Programmable with web software
- Supports RFID badge access (13.56 MHz)
- Deferred start charging (3/6/9 hours)
- Embedded 6mA DC residual current protection
- Dimensions (H x L x W): 365mm x 140mm x 295mm
- Weight: 7 kg
Key Features
- Single-phase charging station for one electric vehicle
- Mode 3 charging with power adjustable between 3.7 kW and 4.6 kW
- Current adjustable between 16A and 20A
- Embedded communication kit and RFID reader for multi-user access control
- Remote control capability via IP or WiFi network
- 6mA DC residual current protection allowing use with upstream RCD type A or F
- Deferred start charging options (3, 6, or 9 hours)
- Compatible with OCPP 1.6J protocol for operator supervision
- Bluetooth application for easy updates
- IP44 rated for protection against water splashes
- IK08 impact resistance rating
- Operating temperature range from -25°C to 50°C
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with existing electrical infrastructure.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel consumption
- Energy-efficient charging with adjustable power settings to optimize electricity use
- Remote management reduces unnecessary energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty duration and terms.
Available Now
The Legrand Single-phase Plastic Green'up Premium EV Charging Station is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
