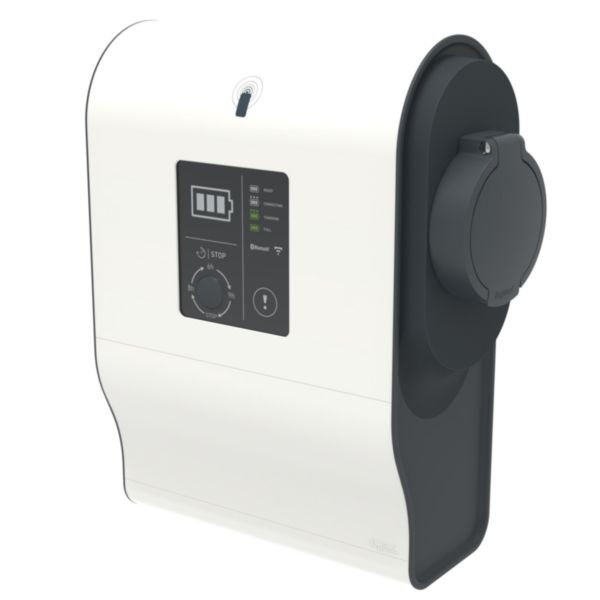

Single-phase Green'up Premium EV Charging Station | 7.4kW Power | Mode 3 Compatible | IP44 Rated | @Each of 1 | by Legrand
The Single-phase Green'up Premium EV Charging Station delivers 7.4kW of power, making it perfect for residential and commercial electric vehicle charging. With Mode 3 compatibility and an IP44 rating for water and dust protection, this station ensures safe and efficient charging. Ideal for both private and public parking areas, it features adjustable power settings and remote management capabilities for enhanced convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single-phase Green'up Premium EV Charging Station | 7.4kW Power | Mode 3 Compatible | IP44 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 059006
Alternatively Known As: EV Charger 7.4kW, Green'up Premium EV Charging Station, Single-phase EV Charger, Mode 3 EV Charger, Legrand EV Charger
Technical Specifications
- Nominal connection power: 7.4 kW
- Single-phase installation side connection
- Number of charging units: 1
- Number of socket outlets Type 2: 1
- Protection: 6mA DC residual current protection embedded
- Housing material: Plastic
- Degree of protection: IP44
- Impact strength: IK08
- Operating temperature: -25 to 50 °C
- Storage temperature: -25 to 70 °C
- Nominal voltage: 220-240 V
- Communication protocols: Bluetooth, Modbus, Network, WiFi, OCPP 1.6J
- Programmable with web software
- Supports RFID badge access (13.56 MHz)
- Deferred start charging: 3, 6, or 9 hours
- Adjustable power levels: 3.7/4.6/5.7/7.4 kW or 16/20/25/32 A
- Dimensions (H x L x W): 365mm x 140mm x 295mm
- Weight: 5 kg
Key Features
- Single-phase charging station with 7.4 kW nominal power
- Mode 3 charging compatible with one electric vehicle
- Embedded communication kit and RFID reader for multi-user access control
- Remote control via IP or WiFi network using smartphone, tablet, or PC
- Protection against residual direct current with 6mA DC embedded
- Adjustable power delivery settings (3.7/4.6/5.7/7.4 kW or 16/20/25/32 A)
- Deferred start charging options (3/6/9 hours)
- Wall mounting kit included; optional floor mounting pedestal available
- IP44 rated for protection against water splashes and dust
- IK08 impact resistance rating
- Supports OCPP 1.6J protocol for operator supervision
- Programmable and interoperable with Bluetooth, Modbus, network, and WiFi
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper network integration.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel consumption
- Energy-efficient charging with adjustable power settings
- Remote management reduces unnecessary energy use
- Durable plastic housing extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Single-phase Plastic Green'up Premium EV Charging Station 7.4kW 32A is available for immediate purchase. Ideal for residential and commercial electric vehicle charging applications.
