Trade Discount 20%

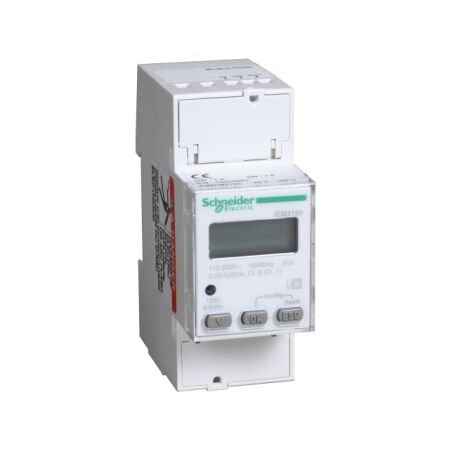

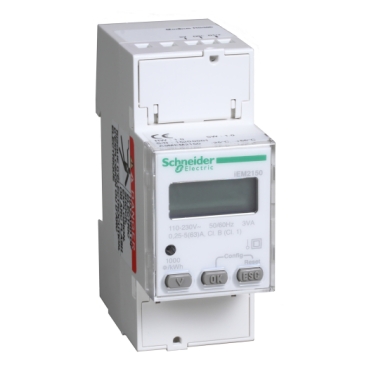

Single Phase kWh Meter 63A ModBUS | LCD Display | DIN Rail Mounting | Accurate Energy Monitoring | @Pack of 1 | by Clipsal
The Single Phase kWh Meter 63A ModBUS is designed for precise energy monitoring in residential, commercial, and light industrial applications. With a maximum current rating of 63A and integrated Modbus communication, it allows for remote monitoring and data logging. The LCD display provides real-time energy readings, making it an essential tool for energy efficiency initiatives.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase kWh Meter 63A ModBUS | LCD Display | DIN Rail Mounting | Accurate Energy Monitoring | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM2150
Alternatively Known As: Single Phase kWh Meter, iEM2150, Energy Meter 63A, Modbus Power Meter, Clipsal Power Meter, SCHA9MEM2150
Technical Specifications
- Type: Single phase kWh energy meter
- Current Rating: 63A
- Voltage: 230V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Display: LCD
- Communication: Modbus RTU (RS485)
- Accuracy: Class 1 (IEC 62053-21)
- Pulse Output: Yes
- Operating Temperature: -25°C to +55°C
- Dimensions (H x L x W): 90mm x 64mm x 36mm
- Weight: 0.25 kg
Key Features
- Single phase kWh energy meter for accurate energy monitoring
- 63A maximum current rating
- 230V operation
- Modular DIN rail mounting for easy installation
- Integrated Modbus communication for remote monitoring and data logging
- LCD display for real-time energy readings
- Compact design suitable for switchboards and distribution panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Residential: Monitoring energy consumption in homes
- Commercial: Office buildings, retail stores, and small businesses
- Industrial: Light industrial facilities requiring single-phase energy metering
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Helps reduce unnecessary power consumption and carbon footprint
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Sgl Ph KWH Meter 63A ModBUS (SCHA9MEM2150) is available for immediate purchase. Ideal for accurate energy monitoring in residential, commercial, and light industrial applications.
