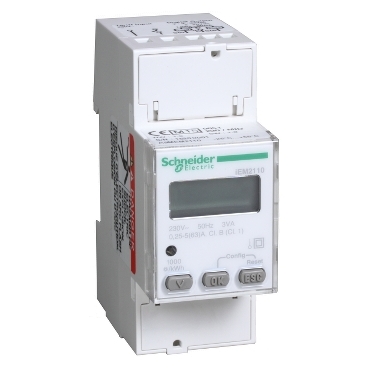

Single Phase kWh Meter 63A Pulse MID | MID Certified | LCD Display | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Single Phase kWh Meter 63A Pulse MID is designed for precise energy monitoring in residential, commercial, and industrial applications. With a maximum current rating of 63A and MID certification for billing accuracy, this meter features a clear LCD display and pulse output for remote monitoring. Ideal for licensed electricians, it ensures compliance with Australian wiring standards while supporting energy efficiency initiatives.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase kWh Meter 63A Pulse MID | MID Certified | LCD Display | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM2110
Alternatively Known As: Single Phase kWh Meter, 63A Energy Meter, MID Certified Power Meter, Clipsal Energy Meter, SCHA9MEM2110
Technical Specifications
- Rated current: 63A
- Voltage: 230V AC
- Frequency: 50Hz
- Pulse output: 1 pulse/Wh
- MID certified (Measuring Instruments Directive)
- Display: LCD
- Mounting: DIN rail
- Accuracy class: Class 1
- Dimensions (H x L x W): 90mm x 63mm x 36mm
- Weight: 0.25 kg
Key Features
- Single phase kWh energy meter
- 63A maximum current rating
- MID certified for billing accuracy
- Pulse output for remote monitoring
- DIN rail mountable for easy installation
- LCD display for clear energy readings
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian wiring rules and standards.
Applications
- Residential: Monitoring single-phase energy consumption in homes and apartments
- Commercial: Accurate energy metering for offices, retail, and small businesses
- Industrial: Sub-metering for equipment and machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Helps reduce unnecessary power consumption by providing accurate usage data
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Sgl Ph KWH Meter 63A Pulse MID (SCHA9MEM2110) is available for immediate purchase. Ideal for accurate energy monitoring in residential, commercial, and industrial settings.
