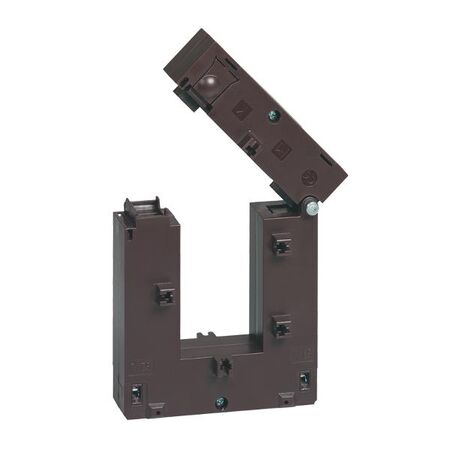

Single Phase Split Core Current Transformer | 1000/5A Ratio | 80x120mm Bar | Easy Install by Legrand
Single phase split core current transformer with 1000/5A transformation ratio and designed for 80x120mm bars—ideal for electrical distribution and energy monitoring systems. Built for easy installation, promoting energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Split Core Current Transformer - for 80 x 120mm Bar - Transformation Ratio 1000/5A
Brand: Legrand
SKU: 412164
Alternatively Known As: Current Transformer, Split Core CT, 1000/5A Transformer
Technical Specifications
- Type: Split core current transformer
- Transformation Ratio: 1000/5A
- Maximum Current: Suitable for high current applications
- Primary Current Rating: 1000A
- Dimensions (H x L x W): 100mm x 50mm x 120mm
- Weight: 1.5 kg
Key Features
- Designed for 80 x 120mm bars
- Transformation ratio of 1000/5A
- Easy installation due to split core design
Professional Installation Requirements
- Recommended to be installed by a qualified electrician to ensure compliance with safety standards.
Applications
- Electrical distribution systems
- Energy monitoring systems
- Industrial applications
Standards & Compliance
- Complies with AS/NZS 60044 for current transformers.
Environmental Benefits
- Promotes energy efficiency by accurately measuring current flow.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Single Phase Split Core Current Transformer is available now for immediate purchase. Ideal for monitoring and measuring current in electrical systems.
