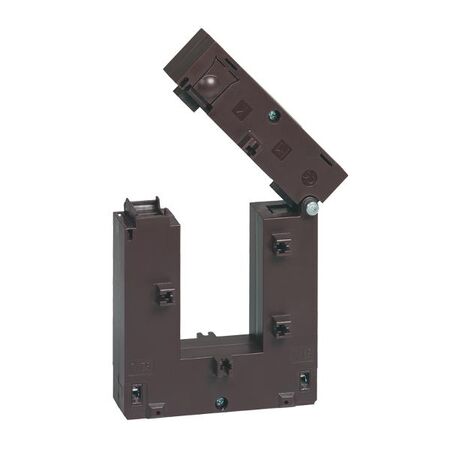

Single Phase Split Core Current Transformer | 2000/5A | 80x160mm Bar | Easy Install by Legrand
Single phase split core current transformer with 2000/5A ratio and 80x160mm bar—ideal for industrial and commercial electrical measurements. Built for precise monitoring, with easy installation on existing cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Split Core Current Transformer - for 80 x 160mm Bar - Transformation Ratio 2000/5A
Brand: Legrand
SKU: 412166
Alternatively Known As: Split Core Current Transformer, Current Transformer 2000/5A
Technical Specifications
- Type: Split core
- Transformation Ratio: 2000/5A
- Primary Amperage: 2000A
- Secondary Amperage: 5A
- Frequency: 50/60Hz
- Dimensions (H x L x W): 160mm x 80mm x 80mm
- Weight: 1.5 kg
Key Features
- Split core design for easy installation on existing cables.
- Transformation ratio of 2000/5A for precise measurements.
Professional Installation Requirements
- Professional installation is recommended for accurate placement and safety.
Applications
- Electrical measurements in industrial and commercial environments
- Monitoring energy consumption in circuits
Standards & Compliance
- Complies with AS/NZS standards for electrical safety.
Environmental Benefits
- Helps reduce energy waste through accurate monitoring.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Single Phase Split Core Current Transformer - for 80 x 160mm Bar - Transformation Ratio 2000/5A is available now for immediate purchase, ideal for energy monitoring tasks.
