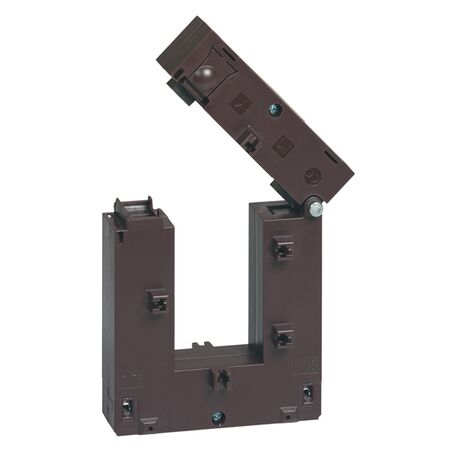

Single Phase Split Core Current Transformer | 400/5A | 50 x 80mm Bar | Easy Install by Legrand
Single phase split core current transformer with 400/5A transformation ratio and 50 x 80mm bar compatibility—ideal for energy measurement and monitoring. Built for industrial, commercial, and residential use, with easy installation around existing wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Split Core Current Transformer - for 50 x 80mm Bar - Transformation Ratio 400/5A
Brand: Legrand
SKU: 412162
Alternatively Known As: Split Core CT, Current Transformer, Energy Monitor
Technical Specifications
- Transformation Ratio: 400/5A
- Frequency: 50Hz
- Max Primary Current: 400A
- Current Output: 5A
- Operating Temperature: -10°C to 50°C
- Dimensions (H x L x W): 80mm x 50mm x 100mm
- Weight: 1.5 kg
Key Features
- Designed for easy installation around existing wiring.
- Suitable for a bar size of 50 x 80mm.
- High accuracy transformation ratio of 400/5A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Energy measurement and monitoring
- Commercial: Electrical panel applications
- Residential: Home energy management systems
Standards & Compliance
- Complies with AS/NZS 60044 for accuracy requirements for current transformers.
Environmental Benefits
- Supports energy efficiency monitoring, promoting better energy management.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Single Phase Split Core Current Transformer - for 50 x 80mm Bar - Transformation Ratio 400/5A is available now for immediate purchase. Ideal for energy measurement and monitoring applications.
