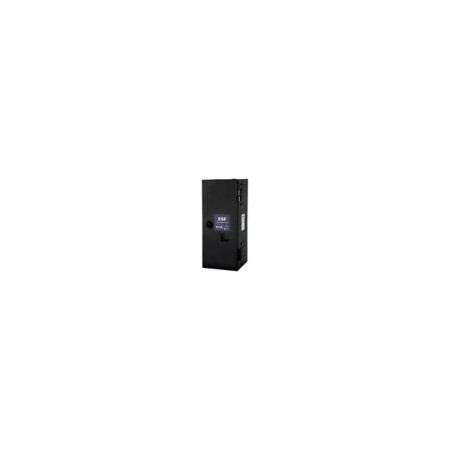

Single Phase Surge Filter 63A | 100kA L-N & 50kA N-E | IP42 Enclosed by Eaton
Protect your electrical systems with this single-phase surge filter rated at 63A, featuring a maximum discharge current of 100kA L-N and 50kA N-E. Ideal for secondary point protection in single-phase installations, it offers an enclosed design with IP42 rating for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Phase Surge Filter 63A | 100kA L-N & 50kA N-E | IP42 Enclosed by Eaton
Brand: Eaton
SKU: ESF631-TN-E
Alternatively Known As: Single Phase Surge Protector, 63A Surge Filter, Eaton Surge Protection Device
Technical Specifications
- Product Name: Eaton Surge protection
- Catalog Number: ESF631-TN-E
- Fault current: 50 kA
- Operating temperature: -10 °C to 65 °C
- Connection: Single-phase
- Phase: Single-phase
- Class: Class 2 Cat B Class 2 Cat C
- Degree of Protection: IP42
- Mounting Method: Surface Wall mounting
- Configuration: Diverter-filter-diverter
- Maximum continuous operating voltage: 320 V L-N
- Maximum discharge current 8x20µs (Imax): 50 kA
- Nominal discharge current 8x20µs (In): 50 kA
- Dimensions (H x L x W): 520mm x 220mm x 240mm
- Weight: 6 kg
Key Features
- Single-phase surge filter with 63A rating
- Maximum discharge current (Imax) L-N: 100kA
- Maximum discharge current (Imax) N-E: 50kA
- Enclosed design with IP42 degree of protection
- Surface wall mounting
- Diverter-filter-diverter configuration
- Operating temperature range: -10°C to 65°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal surge protection performance.
Applications
- Secondary point protection in single-phase electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste
- Enhances system reliability, minimizing downtime and resource consumption
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 1 Phase Surge Filter 63A 100kA Imax L-N enclosed is available now for immediate purchase. Ideal for protecting single-phase electrical installations from surge damage.
