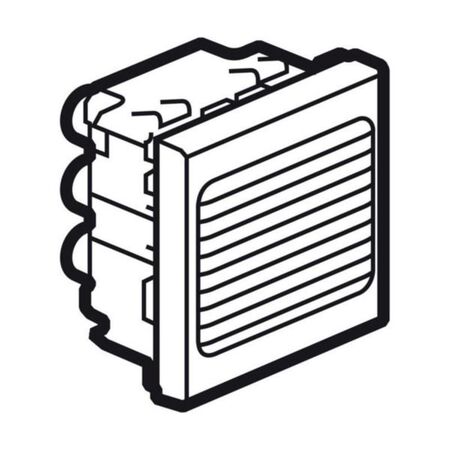

Single Pole Latching Relay | 10 A Current Rating | 250 V~ Operation | Magnesium Finish | @Each of 1 | by Legrand
The Single Pole Latching Relay is designed for efficient lighting control, featuring a 10 A current rating and operating at 250 V~ with a frequency of 50/60 Hz. Ideal for residential and commercial applications, this relay supports resistive loads up to 3000 W and is built with a durable magnesium finish, ensuring longevity and reliability in flush-mounted installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Pole Latching Relay | 10 A Current Rating | 250 V~ Operation | Magnesium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572727
Alternatively Known As: Single Pole Relay, Latching Relay, Lighting Control Relay, Flush Mount Relay
Technical Specifications
- Rated current: 10 A
- Rated voltage: 250 V~
- Frequency: 50/60 Hz
- Resistive load capacity: 3000 W
- Incandescent load capacity: 1800 W
- LV halogen load capacity: 1800 W
- Fluorescent load capacity: 400 VA
- Motor load capacity (roller blind type): 530 W
- Number of contacts: 1 change-over contact
- Connection type: Screw connection
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature: 5-45 °C
- Storage temperature: 5-45 °C
- Dimensions (H x L x W): 45mm x 32mm x 45mm
- Weight: 0.1 kg
Key Features
- Single pole latching relay with 10 A current rating
- Operates at 250 V~ and 50/60 Hz
- Suitable for resistive loads up to 3000 W
- Supports incandescent and LV halogen lamps up to 1800 W
- Fluorescent load capacity of 400 VA
- Motor load capacity (roller blind type) of 530 W
- 2 module width with magnesium finish
- Screw connection type
- Complete with socket
- Polarity free drive and polarization
- IP20 degree of protection
- Impact resistance rating IK04
- Operating temperature range 5-45 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Lighting control systems
- Emergency push-button circuits
- Home and building wiring devices
- Flush mounted electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy efficient relay reduces power loss in control circuits
- Durable magnesium construction enhances product lifespan, reducing waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Single Pole Latching Relay is available for immediate purchase, ideal for residential and commercial lighting control and emergency systems.
