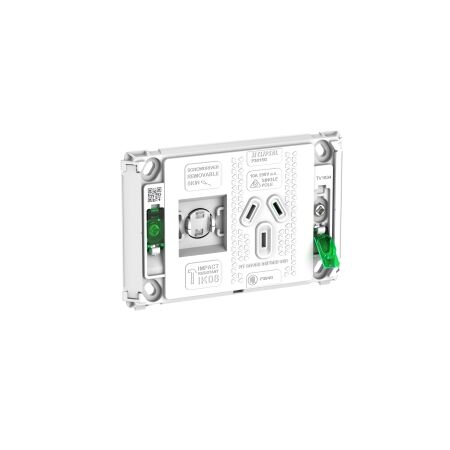

Single Power Point Grid | 250V 10A | Horizontal Mount | Pro Series by Clipsal
Single power point grid with 250V 10A rating and horizontal mount—ideal for commercial spaces. Built for safety and durability, with screw covers and flush mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 10A at 250V AC 50Hz
- Device presentation: mechanism with fixing frame
- Outlet poles configuration: 2P + E with shutter
- Clamping connection capacity: 1 x 2.5...4 x 2.5 mm² for rigid or stranded cables
- Wire stripping length: 16 mm
- Material: PC (polycarbonate), PP (polypropylene), POM (polyoxymethylene)
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95%
- Dimensions (H x L x W): 72mm x 36mm x 112mm
- Weight: 0.1 kg
Key Features
- Designed for commercial use with screw covers to prevent access to screws after installation.
- Flush mounting with a horizontal installation direction.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Offices, retail spaces, and other professional environments
Standards & Compliance
- Complies with AS/NZ 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and made with environmentally friendly materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Pro Series Single Power Point Grid is available now for immediate purchase. Ideal for commercial applications.
