Trade Discount 33%

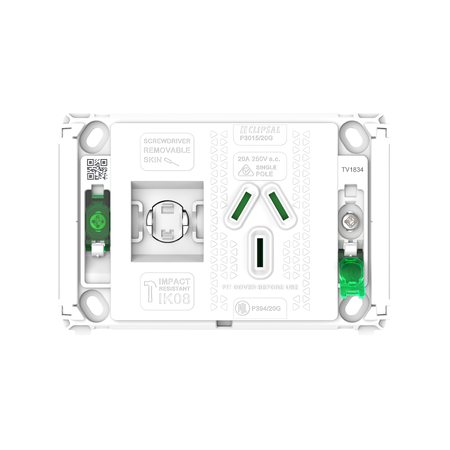

Single Power Point Grid 250V 20A | Horizontal Mount | Pro Series by Clipsal
Single power point grid with 250V and 20A rating—ideal for residential and commercial use. Built for reliable performance, with horizontal mount and modern design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pro Series, Single Power Point Grid, Horizontal Mount, 250V, 20A
Brand: Clipsal
SKU: P3015-20G
Alternatively Known As: Single Switched Power Point, Clipsal Power Point, Pro Series Power Point
Technical Specifications
- Rated current: 20A at 250V AC 50Hz
- Outlet poles configuration: 2P + E with shutter
- Device mounting: flush
- Number of power socket outlets: 1
- Connections - terminals: 3 screw terminal
- Clamping connection capacity: 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
- Wire stripping length: 16 mm
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95 %
- Dimensions (H x L x W): 72mm x 36mm x 112mm
- Weight: 0.08 kg
Key Features
- Rated 20A and 250V for reliable performance.
- Screw covers to prevent direct access to screws after installation.
- Circuit identification labels can be positioned in purpose-designed panels.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring a single power point
Standards & Compliance
- Complies with AS/NZ 3112 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Pro Series Single Power Point Grid is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.
