Single Power Point Grid | Horizontal Mount | 1Ex20A 10A 250V | Clipsal
Single power point grid with horizontal mount and 1Ex20A 10A 250V rating—ideal for residential and commercial spaces. Built for flexibility, with an extra 20A switch for additional control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

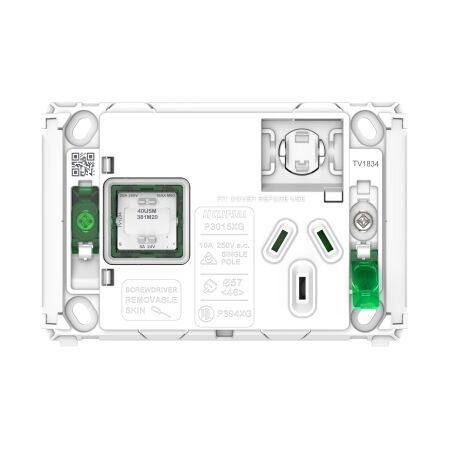

Product Name/Title: Pro Series, Single Power Point Grid, Horizontal Mount, 1Ex20A, 10A, 250V
Brand: Clipsal
SKU: P3015XAG
Alternatively Known As: Single Switched Power Point, Clipsal Power Point, Pro Series Power Point
Technical Specifications
- Rated current: 10 A at 230/240 V AC 50 Hz
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95 %
- Outlet poles configuration: 2P + E with shutter
- Device mounting: flush
- Number of power socket outlets: 1
- Connections - terminals: 3 screw terminals
- Clamping connection capacity: 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
- Dimensions (H x L x W): 72mm x 36mm x 112mm
- Weight: 0.1 kg
Key Features
- Fully compatible with all 40 Series modules.
- Includes an extra 20A switch for additional flexibility.
- Provision for additional switching of lights or exhaust fan control.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Offices, retail spaces
Standards & Compliance
- Complies with AS/NZ 3112 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Pro Series Single Switched Power Point Grid is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.
