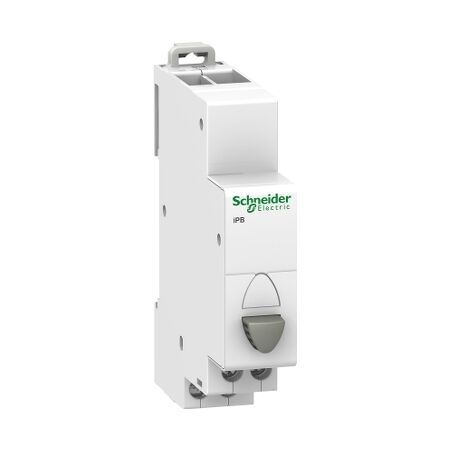

Single Push-Button Switch 1NO | 20A 250V | DIN Rail Mount | Grey by Clipsal

BRAND: Clipsal
SKU: A9E18032
$36.20 List price: $54.30
+ −
30 Days Return Delivery Options
Single push-button switch with 20A, 250V rating and DIN rail mount—ideal for residential and small commercial spaces. Built for easy control, with durable 1NO design and electrical durability of 30,000 cycles.

Product Name/Title: Acti9, Single push-button, 1NO grey

Brand: Clipsal

SKU: A9E18032

Alternatively Known As: Acti9 Push Button, Clipsal Push Button, 1NO Push Button Switch

Technical Specifications
  • Rated operational current: 20 A
  • Rated operational voltage: 250 V AC
  • Control type: 1 push-button grey
  • Mounting support: 35 mm symmetrical DIN rail
  • Wire stripping length: 9 mm
  • Relative humidity: 95 % at 55 °C
  • Ambient air temperature for operation: -35...70 °C
  • Ambient air temperature for storage: -40...80 °C
  • Tropicalisation: 2
  • Dimensions (H x L x W): 82mm x 71mm x 18mm
  • Weight: 0.04 kg
Key Features
  • 1 NO push-button design for easy control.
  • Fixed mounting mode on 35 mm symmetrical DIN rail.
  • Electrical durability of 30,000 cycles.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments
  • Commercial: Small commercial spaces
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Complies with IEC 60947-5-1 and IEC 60669-1 standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Acti9 Single Push-Button 1NO Grey is available now for immediate purchase. Ideal for residential and small commercial applications.

A9E18032 (A9E18032, 210 Kb) [Download]
