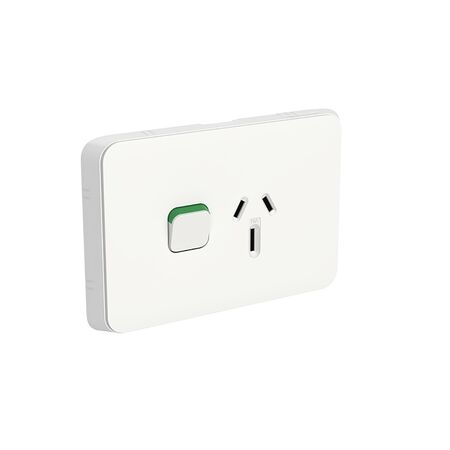

Single Switch Socket Outlet 250V 15A | Horizontal Mount | Matt Finish
Single switch socket outlet with 250V, 15A capacity and horizontal mount—ideal for modern homes and offices. Built for durability, with a sleek matt finish and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Switch Socket Outlet 250V 15A | Horizontal Mount | Matt Finish
SKU: 3015/15-VW
Alternatively Known As: Single Power Point, Single Electrical Outlet, 15 Amp Socket, Horizontal Power Socket, Clipsal 3015/15 Socket
Technical Specifications
- Rated current: 15 A, 250 V AC, 50 Hz
- Material: Polycarbonate (PC) for skin
- Device mounting: Flush
- Outlet poles configuration: 1P + E with shutter
- Fixing mode: By screws, horizontal
- Electrical durability: 10,000 cycles
- Connections - terminals: 3 x screw terminals
- Clamping connection capacity: 2.5 mm² (rigid)
- Wire stripping length: 16 mm
- Ambient air temperature for operation: 0 to 45°C
- Relative humidity: 10 to 95%
- Ground lug position: Straight 180 degree
- Shape of screw head: Philips No 2 (PH2)
- Embedding depth: 24 mm
- Dimensions (H x L x W): 120mm x 36mm x 78mm
- Weight: 0.098 kg
Key Features
- Modern slim, sleek, and clean design
- Horizontal mount with flush device mounting
- Matt finish for subtle aesthetic
- 1P + E outlet with shutter for safety
- Grid plate with skin presentation
- Rated current 15A, 250V AC, 50Hz
- Electrical durability of 10,000 cycles
- 3 x screw terminals with Philips No 2 screw head
- Supports up to 4 cables with 2.5 mm² clamping capacity
- Complies with Australian/New Zealand outlet standards with earthing contact
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Indoor electrical power outlet applications
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable polycarbonate construction reduces need for frequent replacements
- Designed for energy-efficient electrical connections
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Single Switch Socket Outlet 250V 15A Horizontal Mount Matt Finish is available now for immediate purchase. Ideal for residential and commercial indoor electrical power outlet applications.
