Singlemode Fibre Patch Lead 1 Metre | Yellow LSZH Jacket | Duplex LC Connectors | Performance Tested by Cabac

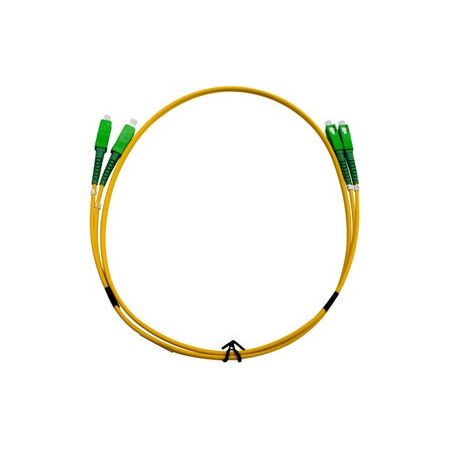

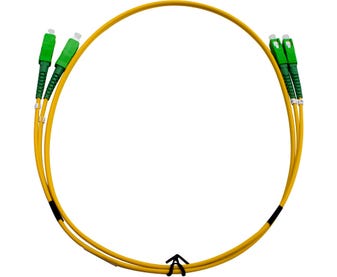

MSS Fibre SCA - SCA Singlemode 1 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead by Cabac, designed for high performance fibre optic patching in data centres and telecommunications with durable LSZH jacket and duplex LC connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SCA - SCA Singlemode 1 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSCASCA1M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, Duplex Fibre Optic Cable, LSZH Fibre Patch Cord, 3mm Fibre Patch Lead, SCA to SCA Fibre Cable
Technical Specifications
- 3mm Yellow LSZH Jacket
- Polarity method: A-to-B
- Duplex Clip on LC connectors
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 1000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 3mm Yellow LSZH sheath
Professional Installation Requirements
- Installation by trained personnel familiar with fibre optic cabling is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SCA - SCA Singlemode 1 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centres, telecommunications, and fibre optic network patching.
