Singlemode Fibre Patch Lead 3 Metre | Yellow LSZH Jacket | A-to-B Polarity | 500 Mating Cycles by Cabac
MSS Fibre SCA - SCA Singlemode 3 Metre Yellow LSZH 3mm Simplex Fibre Patch Lead designed for high performance fibre optic patching in data centres and telecommunications environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

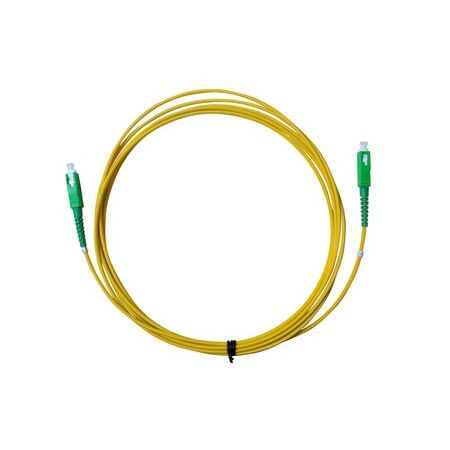

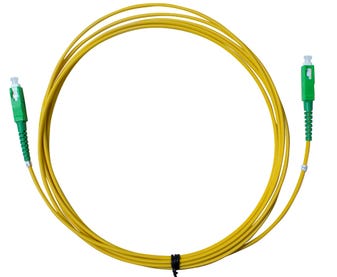

Product Name/Title: MSS Fibre SCA - SCA Singlemode 3 Metre Yellow LSZH 3mm Simplex Fibre Patch Lead
Brand: Cabac
SKU: SSCASCA3M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, LSZH Fibre Patch Cable, Simplex Fibre Optic Cable, SCA to SCA Fibre Lead
Technical Specifications
- 3mm Yellow LSZH Jacket
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: SCA to SCA Singlemode
- Up to 500 mating cycles (IEC 61300-2-2)
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3 standards
- Dimensions (H x L x W): 3mm x 3000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 3mm Yellow LSZH sheath
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
- IEC 11801
- ANSI/TIA 568-3
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SCA - SCA Singlemode 3 Metre Yellow LSZH 3mm Simplex Fibre Patch Lead is available for immediate purchase, ideal for data centres, telecommunications, and fibre optic network patching.
