Singlemode Fibre Patch Lead 5 Metre | Yellow LSZH Jacket | Duplex LC Connectors | Performance Tested by Cabac
The MSS Fibre ST - SC Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres, telecommunications, and fibre equipment patching with a durable LSZH jacket and tested to exceed IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

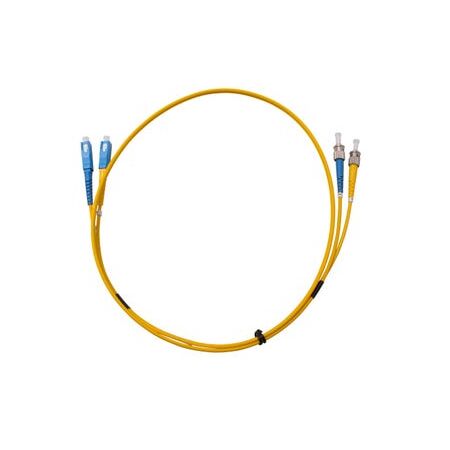

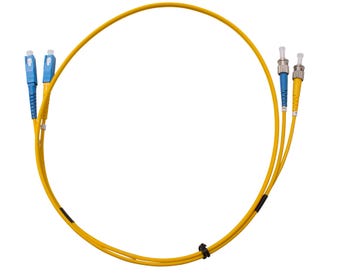

Product Name/Title: MSS Fibre ST - SC Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSTSC5M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, Duplex Fibre Patch Cable, LSZH Fibre Optic Cable, ST to SC Fibre Patch Lead
Technical Specifications
- 3mm Yellow LSZH Jacket
- Polarity method: A-to-B
- Duplex Clip on LC connectors
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 5000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained personnel is recommended to ensure proper handling and performance of fibre optic connections.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre ST - SC Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic network patching applications.
