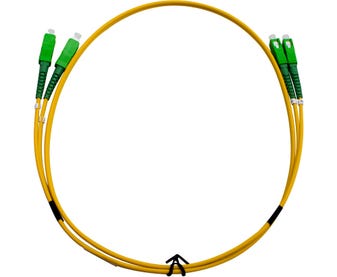

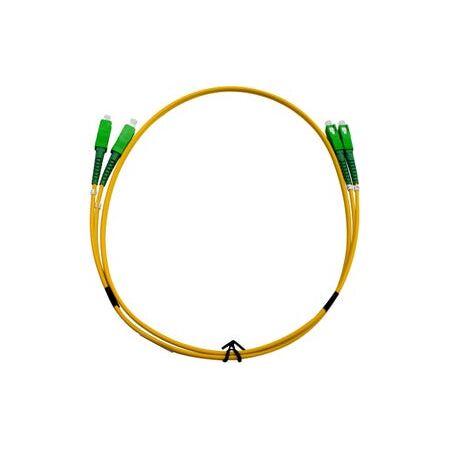

Singlemode Fibre Patch Lead 5 Metre | Yellow LSZH Jacket | Duplex LC Connectors | A-to-B Polarity by Cabac
The MSS Fibre SCA - SCA Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres and telecommunications applications, featuring a durable LSZH jacket and duplex LC connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SCA - SCA Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSCASCA5M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, Duplex Fibre Optic Cable, LSZH Fibre Patch Cord, 3mm Fibre Optic Lead, SCA to SCA Fibre Cable
Technical Specifications
- 3mm Yellow LSZH Jacket
- Polarity method: A-to-B
- Duplex Clip on LC connectors
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 5000mm x 3000mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified telecommunications or network professionals is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- Complies with AS/CA S008 for telecommunications cabling
- Meets IEC 11801 and ANSI/TIA 568-3 standards
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SCA - SCA Singlemode 5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for high-performance data centre and telecommunications applications.
