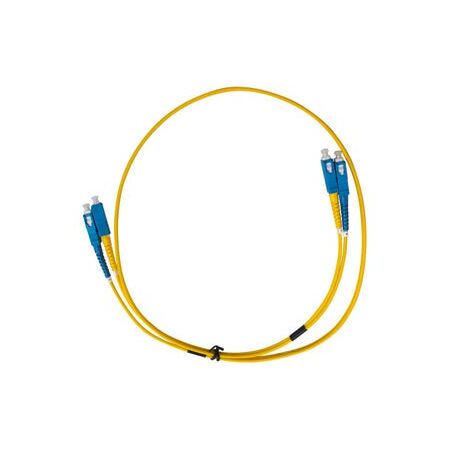

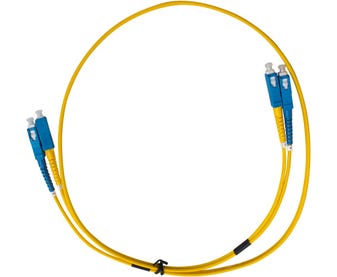

Singlemode Fibre Patch Lead SC to SC | 2 Metre Length | Yellow LSZH Jacket | Duplex Design by Cabac
MSS Fibre SC - SC Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead by Cabac, designed for high performance fibre optic patching in data centres and telecommunications with durable LSZH jacket and tested to IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SC - SC Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSCSC2M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, Duplex Fibre Patch Cable, SC to SC Fibre Patch Lead, LSZH Fibre Patch Lead, 3mm Fibre Optic Cable
Technical Specifications
- 3mm Yellow LSZH Jacket
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: SC to SC Singlemode
- Duplex fibre patch lead
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3 standards
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008 - Installation requirements for customer cabling (wiring rules)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SC - SC Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic network patching.
