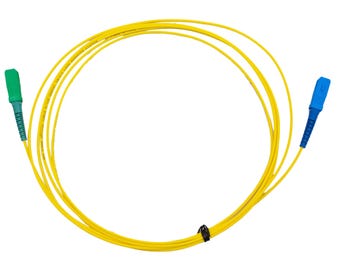

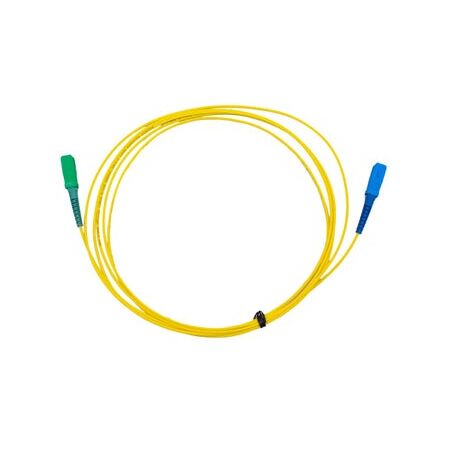

Singlemode Fibre Patch Lead SC to SCA | 3 Metre Length | Yellow LSZH Jacket | High Performance by Cabac
MSS Fibre SC - SCA Singlemode 3 Metre Yellow LSZH 2mm Simplex Fibre Patch Lead by Cabac, designed for high performance fibre optic patching in data centres and telecommunications with durable LSZH jacket and tested to IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SC - SCA Singlemode 3 Metre Yellow LSZH 2mm Simplex Fibre Patch Lead
Brand: Cabac
SKU: SSCSCA3M-SM-2MM
Alternatively Known As: Singlemode Fibre Patch Lead, SC to SCA Fibre Patch Cable, 3m Fibre Optic Patch Lead, LSZH Fibre Patch Lead, Simplex Fibre Cable
Technical Specifications
- Cable Type: Singlemode Simplex Fibre Patch Lead
- Length: 3 Metres
- Jacket: 2mm Yellow LSZH
- Connector Types: SC to SCA
- Polarity: A-to-B method
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 2mm x 3000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 2mm Yellow LSZH sheath
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008 - Installation requirements for customer cabling (wiring rules)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant materials ensure reduced environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre SC - SCA Singlemode 3 Metre Yellow LSZH 2mm Simplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic network patching applications.
