Singlemode Fibre Patch Lead SCA to SCA | 2m Yellow LSZH | High Performance by Cabac

BRAND: CABAC
SKU: SSCASCA2M-SM-2MM
$15.90 List price: $19.20
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

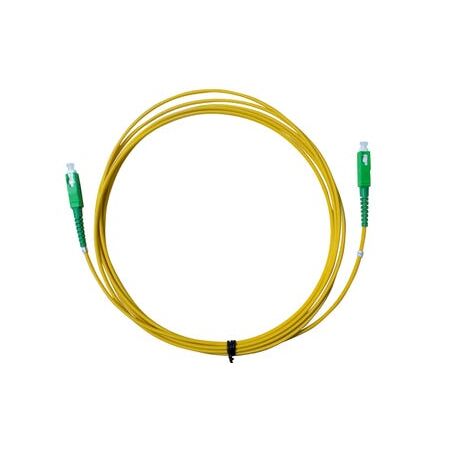

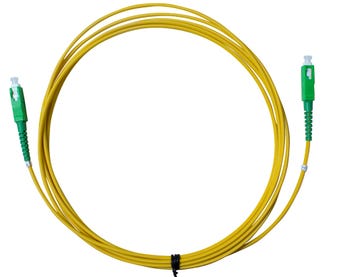

MSS Fibre SCA - SCA Singlemode 2 Metre Yellow LSZH 2mm Simplex Fibre Patch Lead by Cabac, designed for high performance fibre optic patching in data centres and telecommunications with durable LSZH jacket and tested to IEC standards.

Product Name/Title: MSS Fibre SCA - SCA Singlemode 2 Metre Yellow LSZH 2mm Simplex Fibre Patch Lead

Brand: Cabac

SKU: SSCASCA2M-SM-2MM

Alternatively Known As: Singlemode Fibre Patch Lead, LSZH Fibre Patch Cable, Simplex Fibre Optic Cable, SCA Fibre Patch Lead, 2m Fibre Patch Lead

Technical Specifications
  • 2mm Yellow LSZH Jacket
  • Singlemode fibre
  • Polarity method: A-to-B
  • Performance tested to IEC 11801 and ANSI/TIA 568-3
  • Connector type: SCA to SCA
  • Up to 500 mating cycles (IEC 61300-2-2)
  • Standards compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
  • Dimensions (H x L x W): 2mm x 2000mm x 2mm
  • Weight: 0.02 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test standards
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and Singlemode
  • Polarity method 'A-to-B' used in all standard fibre patch leads with only LC connectors having duplex clips
  • Up to 500 mating cycles (IEC 61300-2-2)
  • 2mm Yellow LSZH sheath
Professional Installation Requirements
  • Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
  • CATV/Video
  • PON
  • WDM/DWDM
  • FTTH
Standards & Compliance
  • AS/CA S008
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.

Available Now

The MSS Fibre SCA - SCA Singlemode 2 Metre Yellow LSZH 2mm Simplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre optic patching applications.
