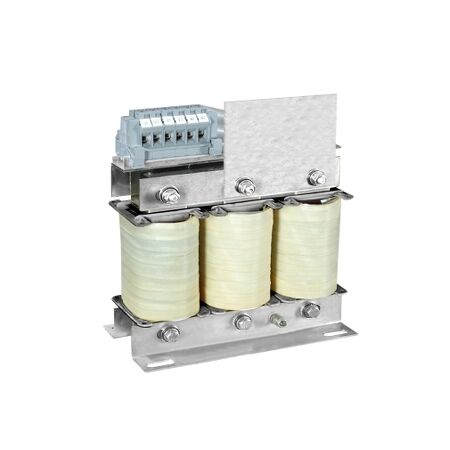

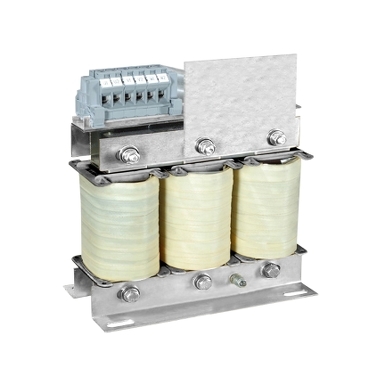

SINUS Filter 300A | IP00 Protection | Reduces Voltage Peaks | Minimizes EMI | @Pack of 1 | by Clipsal
The SINUS Filter 300A is designed for industrial automation systems, providing effective motor protection with IP00 open type design. It reduces voltage peaks and minimizes electromagnetic interference, ensuring improved motor lifespan and reliability. Ideal for use with Altivar variable speed drives, this filter enhances energy efficiency and is perfect for HVAC systems, pumps, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SINUS Filter 300A | IP00 Protection | Reduces Voltage Peaks | Minimizes EMI | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHVW3A5208
Alternatively Known As: Sinusoidal Output Filter, Sine Wave Filter, Motor Protection Filter, Altivar Drive Filter, SCHVW3A5208
Technical Specifications
- Current Rating: 300A
- Voltage: 3-phase, up to 500V AC
- Frequency: 0-150 Hz
- Type: Sinusoidal output filter (sine wave filter)
- Protection: IP00 (open type)
- Compatible with: Altivar variable speed drives
- Operating Temperature: -10°C to +40°C
- Inductance: Optimized for motor protection
- Dimensions (H x L x W): 350mm x 250mm x 400mm
- Weight: 45 kg
Key Features
- Reduces voltage peaks and motor insulation stress
- Minimizes electromagnetic interference (EMI)
- Designed for use with Altivar variable speed drives
- Rated for 300A continuous current
- Open type (IP00) for integration into control panels
- Improves motor lifespan and reliability
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial control systems and variable speed drives.
Applications
- Industrial automation systems
- Variable speed drive installations
- Motor control centers
- HVAC systems
- Pumps and fans
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy losses by improving motor efficiency
- Extends motor life, reducing waste and replacement frequency
- Minimizes electromagnetic emissions for a cleaner environment
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal SINUS Filter 300A IP00 (SCHVW3A5208) is available for immediate purchase. Ideal for industrial motor protection and variable speed drive applications.
