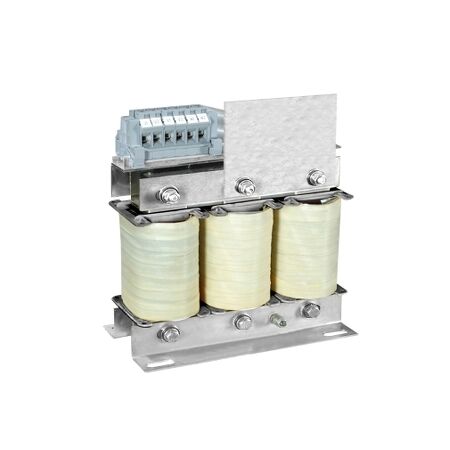

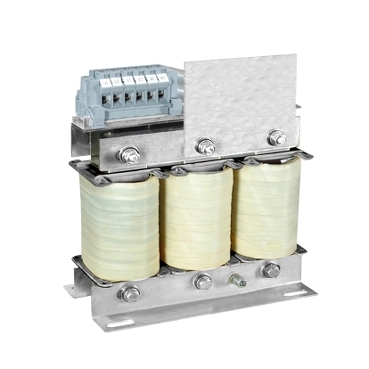

SINUS Filter 400A | IP00 Protection | Sine Wave Output | Motor Protection | @Pack of 1 | by Clipsal
The SINUS Filter 400A is a sine wave output filter designed to reduce voltage peaks and motor insulation stress, making it ideal for industrial automation and variable speed drive installations. With IP00 protection, it integrates seamlessly into control panels, enhancing motor lifespan and system reliability while minimizing electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SINUS Filter 400A | IP00 Protection | Sine Wave Output | Motor Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHVW3A5209
Alternatively Known As: Sinusoidal Output Filter, Sine Wave Filter, Motor Protection Filter, Altivar Drive Filter, SCHVW3A5209
Technical Specifications
- Rated current: 400A
- Type: Sinusoidal output filter (sine wave filter)
- Protection: IP00 (open type)
- Compatible with: Altivar variable speed drives
- Frequency: 0-150 Hz
- Inductance: 0.15 mH
- Voltage: 3-phase, up to 500V
- Operating temperature: -10°C to +40°C
- Mounting: Panel mount
- Dimensions (H x L x W): 350mm x 600mm x 400mm
- Weight: 65 kg
Key Features
- Reduces voltage peaks and motor insulation stress
- Designed for use with Altivar variable speed drives
- Handles up to 400A current
- Open type (IP00) for integration into control panels
- Improves motor lifespan and system reliability
- Minimizes electromagnetic interference (EMI)
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial control systems and variable speed drives.
Applications
- Industrial automation systems
- Variable speed drive installations
- Motor control centers
- HVAC systems
- Pumps and fans
- Manufacturing plants
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy losses by improving motor efficiency
- Extends motor lifespan, reducing waste and replacement frequency
- Minimizes electromagnetic interference, supporting cleaner power environments
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SINUS Filter 400A IP00 (SCHVW3A5209) is available for immediate purchase. Ideal for industrial automation and motor protection applications.
