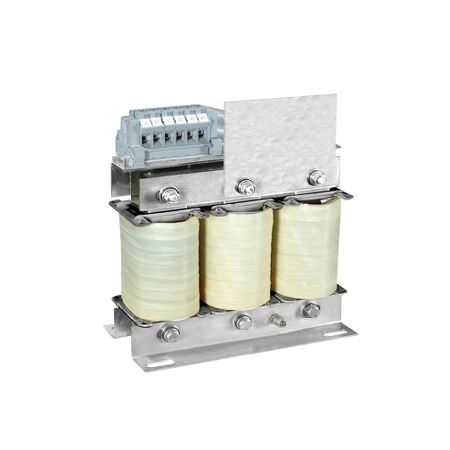

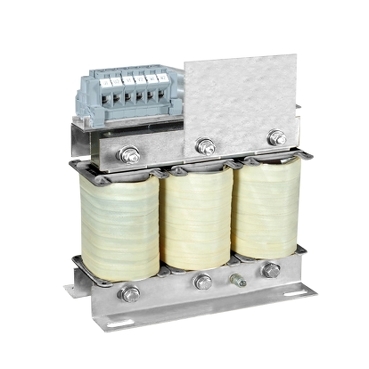

SINUS Filter 600A | Sinusoidal Output Filter | IP00 Rated | Optimized for VSD | @Pack of 1 | by Clipsal
The SINUS Filter 600A is a sinusoidal output filter designed for Altivar variable speed drives, effectively reducing voltage peaks and motor insulation stress. With a robust current rating of 600A and IP00 protection, it enhances motor lifespan and minimizes electromagnetic interference, making it ideal for industrial automation and motor control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SINUS Filter 600A | Sinusoidal Output Filter | IP00 Rated | Optimized for VSD | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHVW3A5210
Alternatively Known As: Sinusoidal Output Filter, Sine Wave Filter, VSD Output Filter, Motor Protection Filter, Altivar Sinus Filter
Technical Specifications
- Current Rating: 600A
- Type: Sinusoidal output filter (sine wave filter)
- Application: For Altivar variable speed drives
- Protection: IP00 (open type, for panel mounting)
- Frequency: 0-150 Hz
- Voltage: Up to 690V AC
- Inductance: Optimized for VSD output
- Operating Temperature: -10°C to +40°C
- Compliance: RoHS
- Dimensions (H x L x W): 400mm x 350mm x 600mm
- Weight: 120 kg
Key Features
- Reduces voltage peaks and motor insulation stress
- Designed for use with Altivar variable speed drives
- Handles up to 600A current
- Open type (IP00) for integration into control panels
- Improves motor lifespan and system reliability
- Minimizes electromagnetic interference (EMI)
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial control panels and variable speed drive systems.
Applications
- Industrial automation systems
- Variable speed drive installations
- Motor control centers
- HVAC systems
- Pumps and fans
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces electromagnetic interference, supporting compliance with environmental standards.
- Extends motor life, reducing waste and resource consumption.
- Improves energy efficiency by optimizing drive and motor performance.
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal SINUS Filter 600A IP00 (SCHVW3A5210) is available for immediate purchase. Ideal for industrial automation and motor protection applications.
