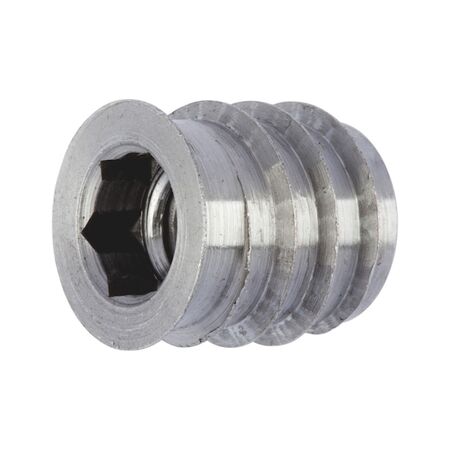

Type SKD Coupling Sleeve | Hexagon Socket & Flange | M10 Thread | Steel Material | by Wurth
The Type SKD Coupling Sleeve with hexagon socket and flange is designed for secure mechanical and structural connections. Made from durable steel, it features a sharp self-tapping male thread for easy installation with manual, electrical, or pneumatic tools. Ideal for industrial assembly, this coupling sleeve allows for repeated loosening and tightening, ensuring versatility and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Type SKD Coupling Sleeve | Hexagon Socket & Flange | M10 Thread | Steel Material | by Wurth
Brand: Wurth
SKU: 37621020
Alternatively Known As: Coupling Sleeve SKD, Hex Socket Coupling Sleeve, SKD Coupling M10, Self-tapping Coupling Sleeve
Technical Specifications
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (d1): M10
- Outer diameter (d2): 18.5 mm
- Length (l1): 20 mm
- Internal drive: HS10
- Type description: SKD
- Dimensions (H x L x W): 20mm x 20mm x 18.5mm
- Weight: 0.05 kg
Key Features
- Connection can be loosened as many times as necessary
- Quickly screws into holes using manual, electrical, or pneumatic tools
- Sharp self-tapping male thread for secure fastening
- Use corresponding bits (art. pre-no. 0614) as insertion tools
Professional Installation Requirements
- Installation should be performed by qualified personnel using the appropriate insertion tools (art. pre-no. 0614) for optimal safety and performance.
Applications
- Mechanical and structural connections requiring secure coupling
- Industrial assembly using manual, electrical, or pneumatic tools
- Situations requiring repeated loosening and tightening of connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Type SKD Coupling Sleeve with Hexagon Socket and Flange SKD 185X20 M10 is available now for immediate purchase. Ideal for industrial and mechanical assembly applications.
