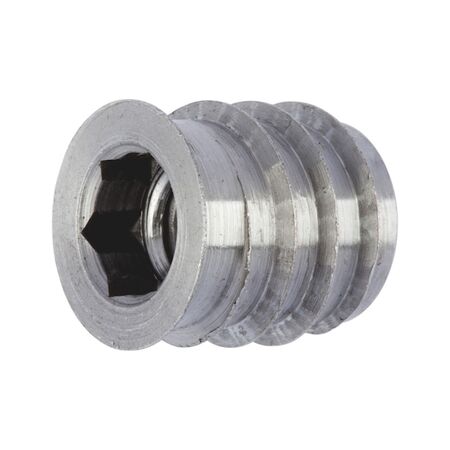

Type SKD Coupling Sleeve | Hexagon Socket & Flange | M12 | by Wurth
The Type SKD Coupling Sleeve is designed for secure mechanical and industrial assembly, featuring a hexagon socket and flange for easy installation. Made from durable steel and RoHS-compliant, it allows for multiple loosening without damage, making it ideal for machinery and equipment applications. Perfect for use with manual, electrical, or pneumatic tools, this coupling sleeve ensures reliable fastening in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Type SKD Coupling Sleeve | Hexagon Socket & Flange | M12 | by Wurth
Brand: Wurth
SKU: 37621225
Alternatively Known As: Coupling Sleeve SKD, Hexagon Socket Coupling, SKD 22x25 Coupling, M12 Coupling Sleeve
Technical Specifications
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes

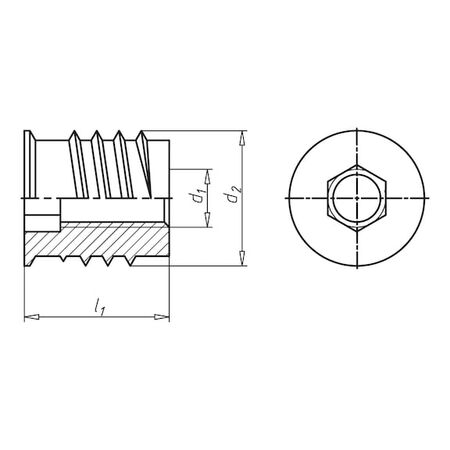

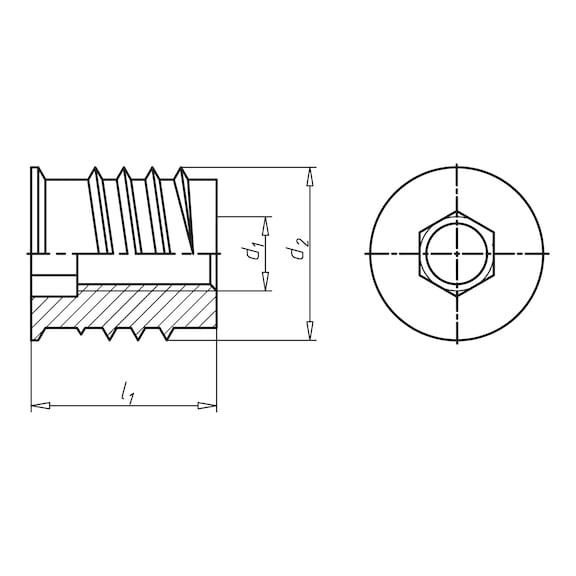

- Thread type x nominal diameter (d1): M12
- Outer diameter (d2): 22 mm
- Length (l1): 25 mm
- Internal drive: HS12
- Type description: SKD
- Dimensions (H x L x W): 25mm x 25mm x 22mm
- Weight: 0.05 kg
Key Features
- Connection can be loosened multiple times without damage
- Quick screwing into holes using manual, electrical, or pneumatic tools
- Sharp self-tapping male thread for secure fastening
- Use of corresponding insertion bits (art. pre-no. 0614) recommended
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate tools and insertion bits for secure and safe assembly.
Applications
- Mechanical and industrial assembly requiring secure coupling connections
- Use in machinery and equipment for fastening and joining components
- Suitable for manual, electrical, or pneumatic tool applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Type SKD Coupling Sleeve SKD 22X25 M12 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
