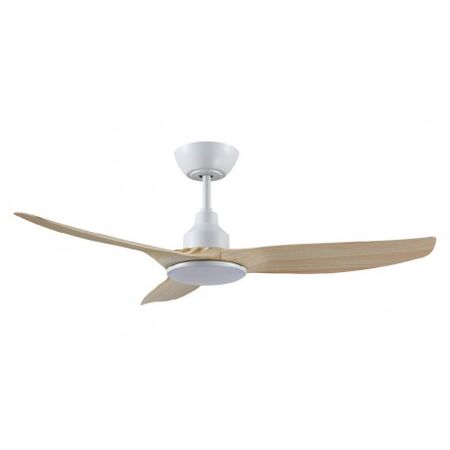

SKYFAN 1200mm 3 Blade DC Ceiling Fan 20W LED Light Oak Ventair
48"/1200mm 3 Blade DC Ceiling Fan with 20W Tri-Colour LED Light Light Oak by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Skyfan 48-inch DC Ceiling Fan, SKY1203LO-L, Light Oak Ceiling Fan with Light
Technical Specifications
- Model: SKY1203LO-L
- Colour: Light Oak
- Rated Voltage: 220-240V AC, 50Hz
- Motor Type: Energy-saving DC motor
- Motor Power: 3.6W to 31W
- Air Delivery: 13,920m³/h
- Speed Settings: Five standard speeds plus Eco mode
- Speed Range: 95, 140, 170, 200 and 230 RPM; Eco 115 RPM
- Blade Count: 3
- Blade Material: Glass fibre composite
- Blade Pitch: 12.5°
- Light Type: Integrated LED panel
- Light Power: 20W
- Light Output: 1,800 lumens average
- Colour Temperature: 3000K warm, 4000K natural and 5000K cool
- Light Dimming: Five-step dimmable
- Controls: Six-speed LCD multifunction remote included
- Reverse Mode: Yes
- Installation Location: Indoor and covered outdoor areas
- Maximum Mount Angle: 15°
- Ceiling Support Requirement: Structure capable of supporting at least 20kg
- Dimensions (H x L x W): 365mm x 1216mm x 1216mm
- Weight: 4.43 kg
Key Features
- Intelligent energy-saving DC motor technology
- Three aerodynamic glass fibre composite blades
- Integrated 20W tri-colour LED light
- Five-step dimming with warm, natural and cool colour temperatures
- Six-speed LCD multifunction remote included
- Eco, sleep and timer functions
- Summer and winter reverse operation
- In-built anti-vibration system
- Quick-click blade assembly
- Optional wall control and app control modules available
- Compatible with Google Home and Amazon Alexa through a compatible control module
- Suitable for indoor and covered outdoor areas
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Ceiling bracing and support must be suitable for the fan, electrical connections must comply with AS/NZS 3000 Wiring Rules, and all-pole disconnection must be incorporated into the fixed wiring in accordance with the installation instructions.
Applications
- Bedrooms and living rooms
- Small to medium-sized residential rooms
- Covered patios, alfresco areas and verandahs
- Residential cooling and air circulation
- Seasonal air circulation using reverse mode
Standards & Compliance
- AS/NZS 60335.2.80:2025 – safety requirements for household and similar electric fans
- AS/NZS 3000:2018 – electrical installation requirements and Wiring Rules
Environmental Benefits
- DC motor technology reduces operating power compared with conventional AC fan motors
- Eco mode supports reduced-power operation and improved energy efficiency
- Integrated LED lighting provides efficient 20W illumination
- Reversible operation can assist seasonal air circulation and reduce reliance on mechanical heating or cooling
- Durable glass fibre composite blades may extend service life and reduce replacement waste
Warranty Information
Five-year limited warranty against manufacturing defects, comprising two years on parts and labour with in-home service followed by an additional three-year motor replacement warranty. The integrated LED panel has a one-year replacement warranty. Commercial use is covered for a maximum of one year.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
