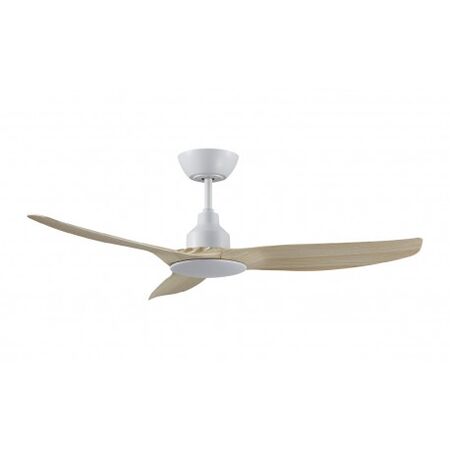

SKYFAN 1200mm 3 Blade DC Ceiling Fan Light Oak Ventair
48"/1200mm 3 Blade DC Ceiling Fan Light Oak by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Skyfan 48-inch DC Ceiling Fan, SKY1203LO, 1200mm Light Oak Ceiling Fan
Technical Specifications
- Model: SKY1203LO
- Rated Voltage: 220-240V AC
- Power Supply: 240V, 50Hz
- Motor Type: Intelligent energy-saving DC motor
- Motor Power: 3.6W / 8W / 15W / 22W / 32.5W; 5.4W Eco mode
- Air Delivery: Up to 13,920m³/h
- Speed Settings: Five fan speeds plus Eco mode
- Speed Range: 95 / 140 / 170 / 200 / 230RPM; 115RPM Eco mode
- Blade Count: 3
- Blade Material: Glass fibre composite
- Blade Finish: Light Oak
- Blade Pitch: 12.5°
- Control: Six-speed LCD multifunction remote control
- Reverse Function: Summer and winter modes
- Maximum Mount Angle: 15°
- Suitable Location: Indoor and covered outdoor areas
- Dimensions (H x L x W): 360mm x 1200mm x 1200mm
- Weight: 4 kg
Key Features
- Quiet, energy-saving DC motor technology
- Three durable glass fibre composite blades
- Light Oak timber-look blade finish
- High airflow output up to 13,920m³/h
- Five standard speed settings plus Eco mode
- Summer and winter reverse function
- Eco, sleep and timer functions
- Six-speed LCD remote control included
- Quick-click blade assembly
- Optional wall control and app control modules available
- Compatible with Google Home and Amazon Alexa via optional app control module
Professional Installation Requirements
- Installation must be completed by a qualified and licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. The ceiling structure must safely support the fan, and the blades must be installed at least 2.1m above the floor in Australia.
Applications
- Bedrooms and living rooms
- Small to medium-sized residential rooms
- Covered patios, verandas and alfresco areas
- Residential cooling and air circulation
- Indoor spaces requiring low-energy ceiling fan operation
Standards & Compliance
- AS/NZS 60335.2.80 – safety requirements for household and similar electric fans
- AS/NZS 3000 – Australian/New Zealand Wiring Rules for fixed electrical installations
Environmental Benefits
- DC motor technology uses substantially less power than comparable conventional AC fan motors
- Low operating power can help reduce household electricity consumption
- Durable glass fibre composite blades support extended product service life and reduced replacement waste
- Suitable for energy-conscious residential air circulation applications
Warranty Information
Five-year limited warranty against manufacturing defects, comprising two years on parts and labour followed by an additional three-year replacement warranty on the motor. Commercial use is limited to a maximum one-year warranty. Any applicable LED warranty does not apply to this non-light model.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
