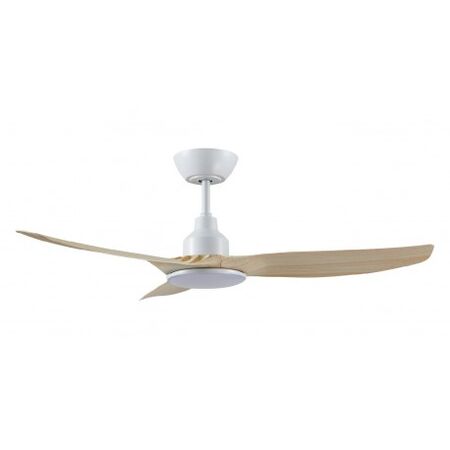

SKYFAN 1300mm 3 Blade DC Ceiling Fan 20W LED Light Oak Ventair
52"/1300mm 3 Blade DC Ceiling Fan with 20W Tri-Colour LED Light Light Oak by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Skyfan DC 52 Inch Ceiling Fan, Ventair SKY1303LO-L, Light Oak DC Ceiling Fan with Light
Technical Specifications
- Model: SKY1303LO-L
- Colour: Light Oak
- Motor Type: DC
- Input Voltage: 220-240V AC, 50Hz
- Motor Power: 3.9W to 31W
- Air Delivery: 14,610m³/h
- Speed Range: 90 to 210 RPM, plus 110 RPM ECO mode
- Blade Count: 3
- Blade Material: Glass fibre composite
- Blade Pitch: 12.5°
- Light Type: Slimline LED panel
- Light Wattage: 20W
- Light Output: 1,800 lumens average
- Colour Temperature: 3000K warm white, 4000K natural white and 5000K cool white
- Light Control: 5-step dimmable
- Remote Control: 6-speed LCD multifunction remote included
- Reverse Function: Summer and winter modes
- Maximum Mount Angle: 15°
- Included Components: Ceiling fan, remote control, hanging bracket, instruction manual and warranty card
- Suitable Location: Indoor and covered outdoor areas
- Ingress Protection: No IP rating
- Dimensions (H x L x W): 365mm x 1321mm x 1321mm
- Weight: 4.35 kg
Key Features
- Energy-saving DC motor technology
- Three durable glass fibre composite blades
- High airflow capacity for medium-sized rooms
- Quiet operation with built-in anti-vibration system
- Five-step dimmable 20W tri-colour LED light
- Six-speed LCD remote control included
- Eco, sleep and timer functions
- Summer and winter reverse modes
- Quick-connect blade assembly
- Optional wall, app and smart-home controls available
- Compatible with Google Home and Alexa when used with the optional control module
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 wiring rules and applicable electrical safety requirements. The ceiling structure must securely support at least 20kg, and the blades should be installed at least 2.1m above the floor.
Applications
- Bedrooms and living rooms
- Medium-sized residential rooms
- Covered outdoor entertaining areas
- Air circulation and supplementary cooling
- Winter heat circulation using reverse mode
Standards & Compliance
- AS/NZS 3000 electrical installation and wiring requirements
- AS/NZS 60335.1 household and similar electrical appliance safety requirements
- AS/NZS 60335.2.80 particular safety requirements for fans
Environmental Benefits
- DC motor technology can reduce operating energy consumption compared with conventional AC ceiling fan motors
- LED panel provides efficient illumination with an average output of 1,800 lumens from 20W
- Durable glass fibre composite blades support extended service life and reduced replacement waste
- Fan operation can improve air circulation and reduce reliance on mechanical cooling or heating in suitable conditions
Warranty Information
Five-year limited warranty against manufacturing defects, comprising two years of parts and labour with in-home service followed by three additional years of motor replacement warranty. The LED panel carries a two-year replacement warranty where applicable. Commercial use is covered for a maximum of one year. Installation by a licensed electrician is required for warranty validity.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
