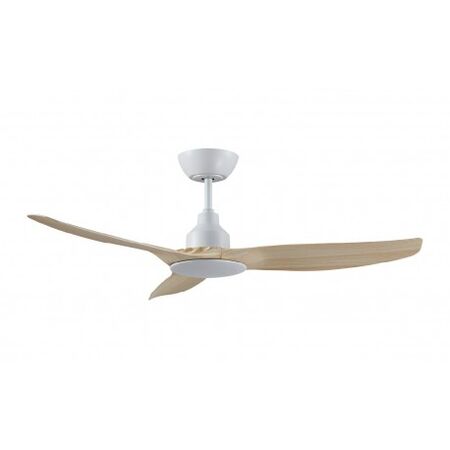

SKYFAN 1300mm 3 Blade DC Ceiling Fan Light Oak Ventair
52"/1300mm 3 Blade DC Ceiling Fan Light Oak by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Skyfan DC 52-inch Ceiling Fan, Light Oak Ceiling Fan with LED Light, 1300mm DC Ceiling Fan
Technical Specifications
- Model: SKY1303LO-L
- Finish: Light Oak
- Input: 240V AC, 50Hz
- Motor Type: Energy-saving DC motor
- Motor Power: 3.9W low speed to 31W high speed
- Air Delivery: 14,610m³/h
- Speed Settings: 6 speeds plus Eco mode
- Speed Range: 90–210 rpm; Eco mode 110 rpm
- Blade Count: 3
- Blade Material: Glass fibre composite
- Blade Pitch: 12.5°
- Light Type: Slimline LED panel
- Light Output: 20W, 1800 lumens
- Light Control: 5-step dimmable
- Colour Temperature: Tri-colour warm, natural and cool; 3000K, 4000K and 5000K
- Controls: 6-speed LCD remote included
- Reverse Function: Summer and winter modes
- Maximum Mount Angle: 15°
- Suitable Location: Indoor and covered outdoor areas
- Gross Shipping Weight: 5.6kg
- Dimensions (H x L x W): 360mm x 1300mm x 1300mm
- Weight: 5.6 kg
Key Features
- 1300mm, 52-inch three-blade ceiling fan
- Light oak finish with matching composite blades
- Energy-saving DC motor technology
- Up to 75% lower power consumption than comparable AC fan technology
- Quiet operation suitable for bedrooms and living areas
- Integrated 20W tri-colour LED light with 1800-lumen output
- Five-step dimming for adjustable light levels
- Six-speed LCD multifunction remote included
- Eco, sleep and timer functions
- Summer and winter reversible operation
- In-built anti-vibration system
- Quick-click blade assembly
- Optional wall control, app control and extension rods available
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with the manufacturer’s instructions and AS/NZS 3000. The fan is suitable only for indoor and adequately covered outdoor locations.
Applications
- Bedrooms
- Living rooms and family rooms
- Dining areas
- Home offices
- Covered patios and alfresco areas
- Medium-sized residential rooms
- Light commercial indoor areas, subject to the applicable commercial warranty conditions
Standards & Compliance
- AS/NZS 60335.2.80:2025 – safety requirements for electric fans
- AS/NZS 3000 – electrical installation requirements and wiring rules
- AS/NZS 3820 – essential safety requirements for relevant electrical equipment
Environmental Benefits
- Energy-saving DC motor technology can reduce operating power consumption compared with conventional AC fan motors
- Integrated LED lighting provides efficient illumination with a 20W power rating
- Durable glass fibre composite blades support a long service life and reduce replacement waste
- Reversible operation can assist seasonal air circulation and reduce reliance on mechanical heating or cooling
- Five-year residential warranty may help extend product service life and reduce premature disposal
Warranty Information
Five-year limited residential warranty comprising two years of in-home parts and labour coverage followed by three years of motor replacement warranty. The integrated LED light carries a two-year replacement warranty. Commercial applications are limited to a maximum one-year warranty, with no in-home service. Installation must be completed by a qualified electrician.
Available Now
Available through authorised Ventair distributors in Australia.
