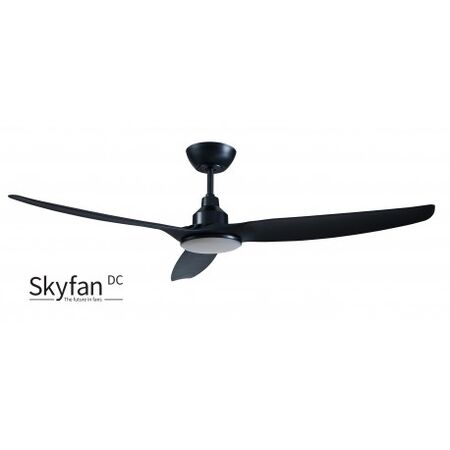

SKYFAN 1500mm 3 Blade DC Ceiling Fan 20W LED Black Ventair
60"/1500mm Glass Fibre Composite 3 Blade DC Ceiling Fan with 20W Tri-CCT LED Light Black by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Skyfan 60-inch DC Ceiling Fan, SKY1503BL-L, Black Skyfan DC
Technical Specifications
- Model: SKY1503BL-L
- Fan Type: Intelligent energy-saving DC motor
- Input: 240V AC, 50Hz
- Motor Power: 3.9W to 44.2W, depending on speed
- Air Delivery: 19,300m³/h
- Fan Speeds: 73, 104, 127, 150 and 175 RPM, plus 88 RPM Eco mode
- Blade Count: 3
- Blade Material: Glass fibre composite
- Fan Sweep: 1500mm or 60 inches
- Blade Pitch: 12.5 degrees
- Light Type: Slimline LED panel
- Light Output: 1800 lumens
- Light Power: 20W
- Light Control: Five-step dimmable
- Colour Temperature: Warm, natural and cool white
- Reverse Function: Summer and winter operation
- Remote Control: Six-speed LCD remote included
- Maximum Mount Angle: 15 degrees
- Operating Location: Indoor and covered outdoor areas
- Installation: Qualified electrician required
- Dimensions (H x L x W): 360mm x 1500mm x 1500mm
- Weight: 6.4 kg
Key Features
- Energy-saving DC motor technology
- Three durable glass fibre composite blades
- High airflow output of up to 19,300m³/h
- Five-step dimmable 20W LED light
- Tri-colour LED selection for warm, natural or cool white light
- Six-speed LCD remote control included
- Eco, sleep and timer functions
- Summer and winter reverse modes
- Quick-connect blade assembly
- Suitable for indoor and covered outdoor applications
- Compatible with optional wall and app control modules
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the installation instructions, AS/NZS 3000 and applicable electrical safety requirements. An all-pole disconnection must be incorporated into the fixed wiring. The fan blades should be installed at least 2.1m above the floor.
Applications
- Residential bedrooms, living rooms and dining areas
- Large indoor rooms requiring high-volume air movement
- Covered patios, verandahs and alfresco areas
- Energy-conscious residential cooling applications
- Commercial interiors where permitted by the warranty conditions
Standards & Compliance
- AS/NZS 60335.2.80:2016 for safety requirements applicable to household and similar electric fans
- AS/NZS 60335-1 requirements for electrical appliance safety, including all-pole disconnection
- AS/NZS 3000 Australian Wiring Rules for electrical installation
Environmental Benefits
- DC motor technology can use substantially less power than comparable AC fan motors
- Tri-colour LED lighting provides efficient illumination at 20W
- Glass fibre composite blades are durable, helping extend product service life and reduce replacement waste
- Energy-efficient fan operation can reduce electricity consumption associated with room cooling
Warranty Information
Five-year limited warranty against manufacturing defects, comprising two years on parts and labour followed by three years replacement warranty on the motor. The LED panel is covered by a one-year replacement warranty. Commercial use is covered for one year. Warranty is subject to licensed installation and Ventair terms and conditions.
Available Now
Available through authorised Ventair distributors in Australia.
