Trade Discount 25%

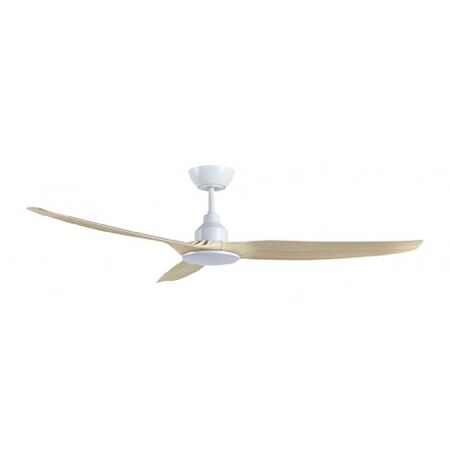

SKYFAN 1500mm 3 Blade DC Ceiling Fan 20W LED Light Oak Ventair
60"/1500mm 3 Blade DC Ceiling Fan with 20W Tri-Colour LED Light Light Oak by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Skyfan DC 1500, 60-inch DC ceiling fan, 3-blade ceiling fan with light, light oak ceiling fan
Technical Specifications
- Fan Diameter: 1500mm, nominal 60 inches
- Motor Type: Energy-saving DC motor
- Motor Power: 3.9W to 43W
- Air Delivery: 19,300m³/h
- Speed Range: 73 to 175 RPM, plus 88 RPM Eco mode
- Blade Count: 3
- Blade Material: Glass fibre composite
- Blade Pitch: 12.5°
- Light Type: Integrated LED panel
- Light Output: 1800 lumens average
- Light Power: 20W
- Colour Temperature: 3000K warm white, 4000K natural white and 5000K cool white
- Dimming: 5-step dimmable
- Controls: 6-speed LCD remote included
- Reverse Function: Summer and winter modes
- Rated Input: 220–240V AC, 50Hz
- Maximum Mounting Angle: 15°
- Suitable Location: Indoor and covered outdoor areas
- Dimensions (H x L x W): 365mm x 1517mm x 1517mm
- Weight: 4.8 kg
Key Features
- Intelligent energy-saving DC motor technology
- Three durable glass fibre composite blades
- High airflow capacity for larger rooms and open spaces
- Quiet operation with built-in anti-vibration system
- Integrated 20W LED panel with three selectable colour temperatures
- Five-step LED dimming
- Six-speed LCD multifunction remote included
- Eco, sleep and timer functions
- Summer and winter reverse modes
- Optional wall and app controls available
- Quick-connect blade assembly
Professional Installation Requirements
- Installation must be completed by a licensed electrician. The ceiling structure must support at least 20kg, and fixed wiring must incorporate all-pole disconnection in accordance with the applicable wiring rules. Install with the fan blades at least 2.1m above the floor and maintain required clearance from nearby objects.
Applications
- Cooling living rooms, bedrooms and open-plan residential areas
- Air circulation in medium to large indoor rooms
- Covered patios, alfresco areas and other protected outdoor spaces
- Supplementary air movement and heat circulation in summer and winter modes
Standards & Compliance
- AS/NZS 60335.2.80:2025 – applicable particular safety requirements for household and similar fans
- AS/NZS 3000 – electrical installation and wiring requirements
Environmental Benefits
- Energy-saving DC motor can operate at approximately 6W in Eco mode, reducing electricity consumption during low-speed operation
- Efficient 20W LED lighting provides up to 1800 lumens with lower energy use than many conventional light sources
- Durable composite blades and a long-life motor help reduce replacement frequency and associated waste
- Integrated lighting and fan functions can reduce the need for separate ceiling fixtures
Warranty Information
Five-year fan warranty comprising two years of in-home service plus three years of motor replacement coverage. The product listing specifies a one-year warranty for the LED panel. Commercial installations are limited to a one-year warranty, subject to Ventair warranty terms and qualified installation requirements.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
