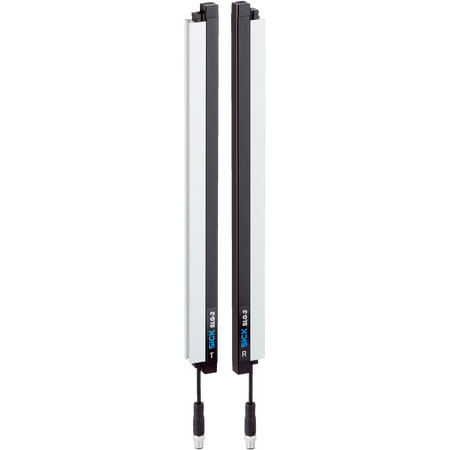

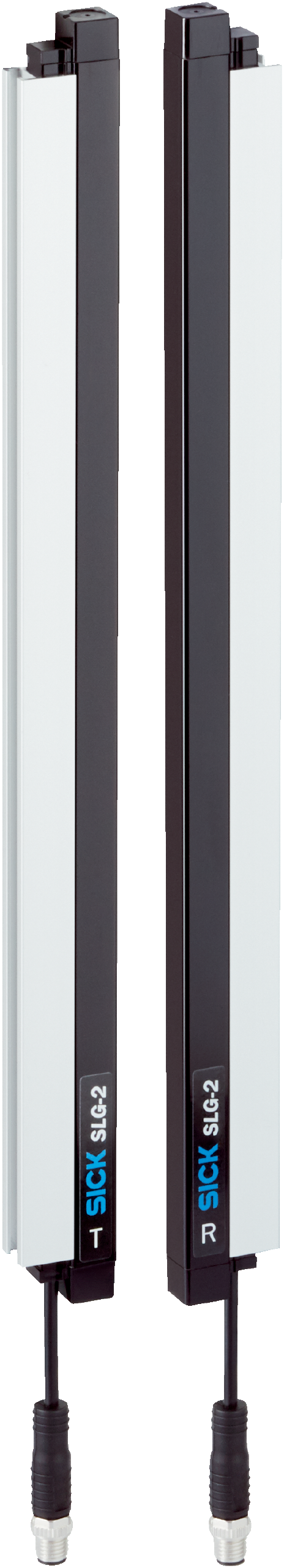

SLG25S-060SAR11A00 | Automation light grids
The SICK SLG25S-060SAR11A00 Automation Light Grid offers precise and reliable object detection with a sensing range up to 4.9 meters, featuring 24 infrared LED beams and robust IP65/IP67 rated housing for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG25S-060SAR11A00 | Automation light grids
Brand: SICK
SKU: 1120090
Alternatively Known As: Automation light grid, Safety light curtain, Optical safety sensor, Industrial light barrier, SICK light grid sensor
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 36.8 mA, Receiver ≤ 53.4 mA
- Output type: Push-pull PNP/NPN, max output current 100 mA
- Digital input: 1, signal voltage HIGH >15 V, LOW <5 V
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), max cable length 20 m
- Beam count: 24 infrared LED beams at 850 nm wavelength
- Response time: Max 4.6 ms (parallel beam), 9.2 ms (cross beam)
- Protection class: III
- Enclosure rating: IP65 and IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm amplitude
- Dimensions (H x L x W): 600mm x 24mm x 12mm
- Weight: 1.16 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 440 mm to 4900 mm with parallel and cross beam options
- Detection height of 600 mm with 24 infrared LED beams
- Minimum detectable object size: 30 mm² (parallel beam), ≥16.5 mm² (3x cross beam)
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High ambient light immunity up to 50,000 lx
- IP65 and IP67 rated enclosure for harsh environments
- Fast response times with max 4.6 ms (parallel beam) and 9.2 ms (cross beam)
- Overcurrent, short-circuit, and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Material handling and conveyor systems
- Factory automation requiring precise light grid sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG25S-060SAR11A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection and perimeter guarding.
