SLG50S-120FBKA1K01 | Automation light grids

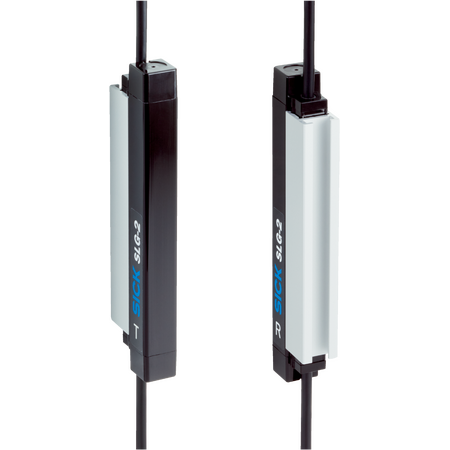

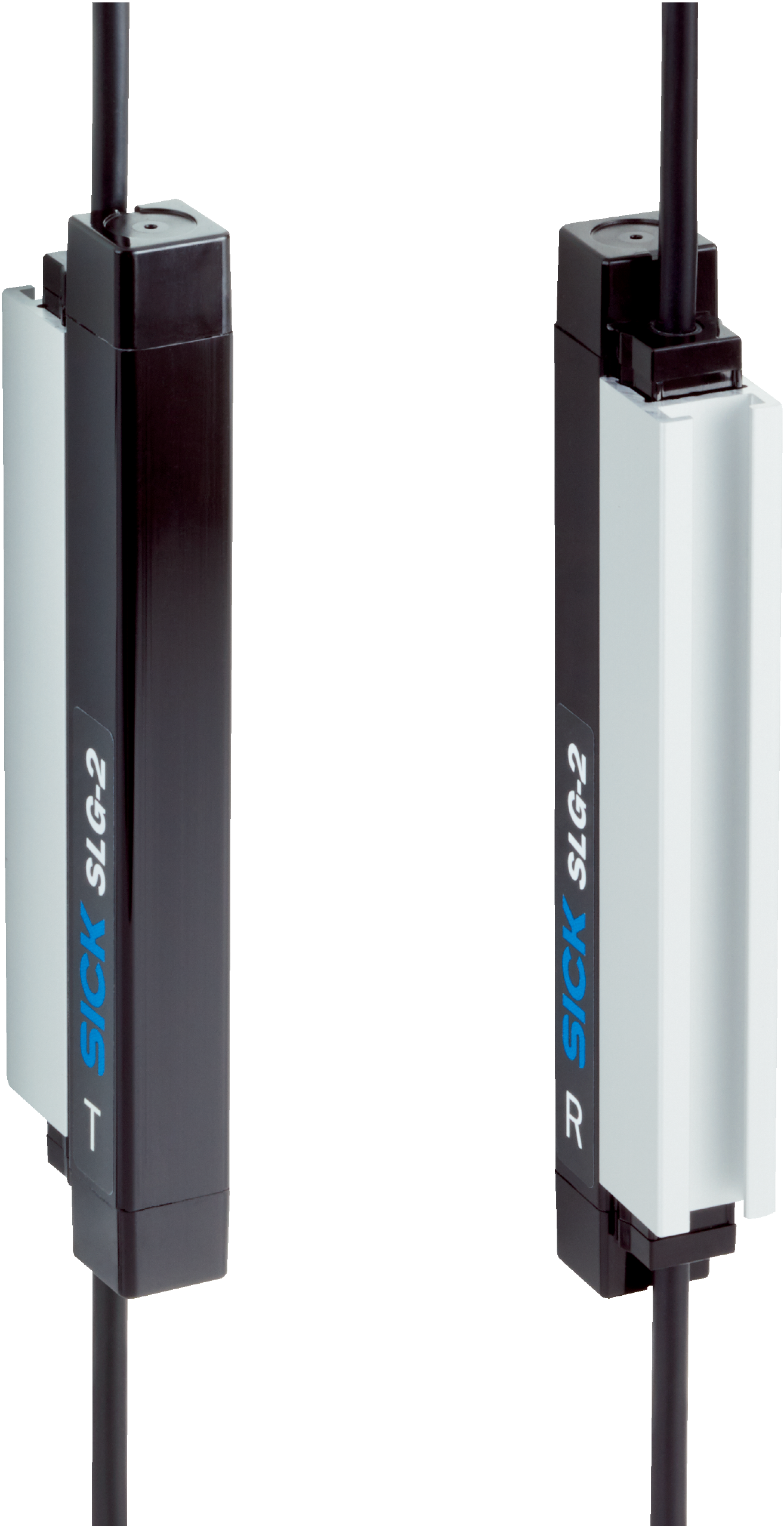

The SICK SLG50S-120FBKA1K01 Automation Light Grid is a high-performance sender/receiver light grid system designed for industrial automation, offering precise object detection with robust protection and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG50S-120FBKA1K01 | Automation light grids
Brand: SICK
SKU: 1108035
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid
Technical Specifications
- Device version: FlexChain Guest
- Minimum detectable object (MDO): 55 mm
- Beam separation: 50 mm
- Number of beams: 24
- Detection height: 1,200 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male and female connectors, 4-pin, 0.5 m
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected
- Protection class: III
- Front screen material: PMMA
- Maximum range: 9.1 m
- Operating range: 6.5 m
- Scanning time: 2.1 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC compliance: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 1200mm x 24mm x 12mm
- Weight: 0.676 kg
Key Features
- Sender/receiver light grid system with 24 beams
- Minimum detectable object size of 55 mm
- Detection height of 1,200 mm
- Infrared light source with 850 nm wavelength
- Flat optical light exit
- IP65 and IP67 rated enclosure for dust and water protection
- LED indication for status monitoring
- Short scanning time of 2.1 ms
- Robust against shock and vibration
- Reverse polarity and overcurrent protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation safety standards and electrical connections.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging lines
- Robotics and automated manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable IP65/IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG50S-120FBKA1K01 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
