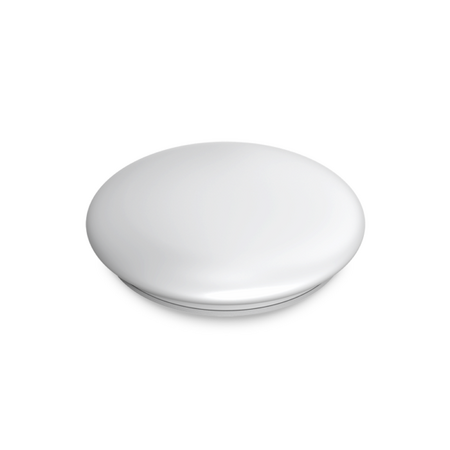

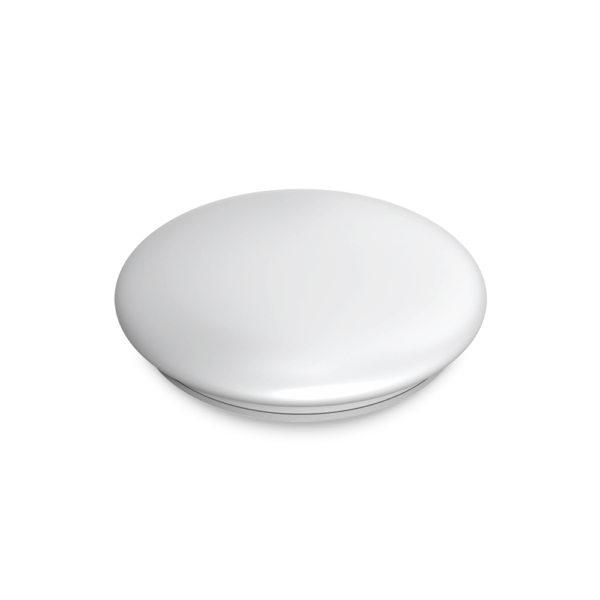

SLIM 17W 350mm Dia Oyster LED Light | Tri-CCT | IP44 Rated | 109 lm/W Efficiency | by atom
The SLIM 17W 350mm Dia Oyster LED Light features a versatile Tri-CCT configuration, allowing you to choose between warm white, cool white, and daylight options. With an impressive efficiency of 109 lm/W and an IP44 rating, this light is perfect for both residential and commercial indoor applications, ensuring reliable performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Slim Oyster LED Light, 17W Tri CCT LED Ceiling Light, Atom Slim LED Oyster Light
Technical Specifications
- Total System Efficiency: 109 lm/W
- Power: 17 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Colour Rendering Index (CRI): >80
- LED Lifetime: >54,000 hours (TM-21)
- IP Rating: IP44
- Body Material: Steel
- Diffuser Material: Acrylic
- Operating Temperature: -20 to 40 °C
- Driver Type: Fixed output, included
- Dimmable: No
- Switch Type: Inline
- Wiring: Re-wireable terminal block (3 pin)
- Dimensions (H x L x W): 60mm x 350mm x 350mm
- Weight: 1.5 kg
Key Features
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5000K) options
- High total system efficiency of 109 lm/W
- IP44 rated for protection against water splashes
- Steel body with acrylic diffuser
- Fixed output driver included, non-dimmable
- Operating temperature range from -20 to 40 °C
- Inline switch type with power factor of 0.95
- LED lifetime over 54,000 hours based on TM-21
- Microwave sensor option available with adjustable settings
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Wall or ceiling installation in residential and commercial spaces
- Indoor lighting requiring tri-colour temperature options
- Suitable for areas needing IP44 rated fixtures
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes and approvals
Warranty Information
Standard warranty is 3 years return-to-base for domestic use. VIP warranty offers 5 years total (3 onsite + 2 RTB) for registered users with additional terms.
Available Now
The atom SLIM 17W 350mm Dia Oyster - Tri CCT LED Light is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
