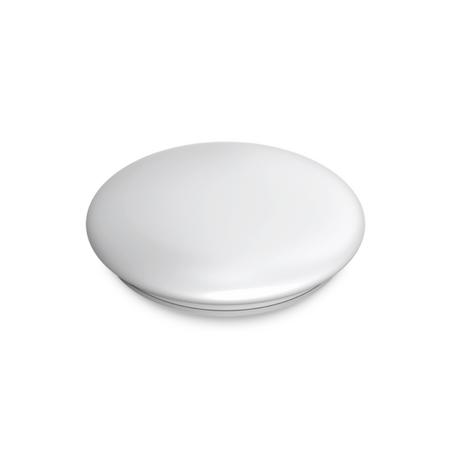

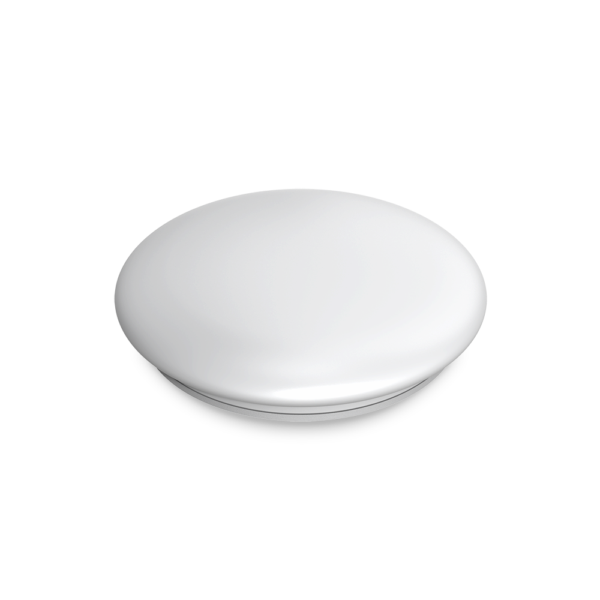

SLIM 25W 400mm Dia Oyster Tri CCT | 100 lm/W Efficiency | IP44 Rated | by atom
The SLIM 25W 400mm Dia Oyster Tri CCT LED light offers adjustable color temperatures of 3000K, 4000K, and 5000K, making it perfect for various indoor lighting applications. With a high efficiency of 100 lm/W and an IP44 rating, this light is designed for both residential and commercial use, ensuring durability and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri CCT LED Oyster Light, 25W LED Ceiling Light, Atom Slim LED Panel, Adjustable Colour Temperature LED Light
Technical Specifications
- Total System Efficiency: 100 lm/W
- Power: 25W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- Colour Temperatures: 3000K, 4000K, 5000K selectable
- LED Lifetime: >54,000 hours (TM-21 report)
- IP Rating: IP44
- Body Material: Steel
- Diffuser Material: Acrylic
- Power Factor: 0.95
- Input Frequency: 50 Hz
- Switch Type: Inline
- Driver Type: Fixed output, constant current
- Dimmable: No
- Working Temperature Range: -20 to 40 °C
- Wiring: Re-wireable terminal block (3 pin)
- Sensor Option: Microwave with adjustable lux, time delay, and detection range
- Dimensions (H x L x W): 70mm x 400mm x 400mm
- Weight: 1.5 kg
Key Features
- Tri-CCT configuration with selectable 3000K, 4000K, and 5000K colour temperatures
- High total system efficiency up to 100 lm/W
- IP44 rated for protection against splashing water
- Steel body with white finish and acrylic diffuser
- Fixed output driver included, non-dimmable
- Microwave sensor option available with adjustable settings
- Long LED lifetime exceeding 54,000 hours
- Power factor of 0.95 and input voltage range 216-253Vac
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Wall or ceiling installation in residential and commercial spaces
- Indoor lighting for offices, hallways, and general areas
- Suitable for areas requiring tri-colour temperature lighting options
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Particular Requirements for Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes and approvals
Warranty Information
Standard warranty includes 3 years return-to-base for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users.
Available Now
The atom SLIM 25W 400mm Dia Oyster - Tri CCT LED light is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
