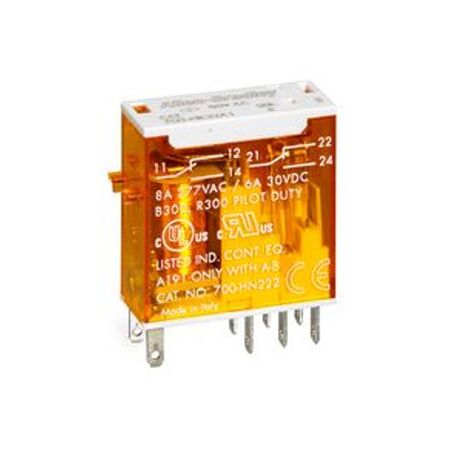

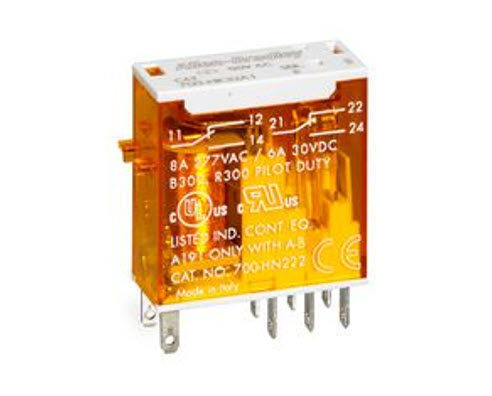

Slim Line DPDT Relay with LED Indicator | 8 Amps Contact Rating | Plug-in Blade Terminals | by Allen-Bradley
The Slim Line DPDT Relay with LED Indicator is perfect for industrial control systems and automation equipment. With an 8 amps contact rating and plug-in blade-style terminals, it ensures easy wiring and reliable performance. Ideal for applications requiring secure mounting and status monitoring, this relay is designed for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 8 Amps
- Frequency: 50/60 Hz
- Coil Voltage: 6 VDC
- Contact Configuration: Double Pole Double Throw (DPDT)
- Terminal Type: Plug-in blade-style
- Indicator: LED pilot light
- Mounting Style: Open style, mountable
- Includes retainer clip with sockets
- Dimensions (H x L x W): 50mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Slim line design for space-saving installation
- Plug-in blade-style terminals for easy wiring
- Retainer clip with sockets for secure mounting
- On/off LED indicator for status monitoring
- 8 amp contact rating suitable for moderate loads
- Double Pole Double Throw (DPDT) configuration
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper wiring and safety compliance.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
- Mountable relay applications requiring DPDT switching
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED pilot light reduces energy consumption compared to traditional indicators
- Durable design extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HK32Z064 relay is available for immediate purchase, ideal for industrial and automation control applications.
