Slim Line Relay 16A 1 CO SPDT | 24V AC Coil | Pilot Light by NHP
Slim line relay with 16A nominal current and 24V AC coil—ideal for industrial automation and control panels. Built for reliable switching, with LED indication and easy plug-in installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

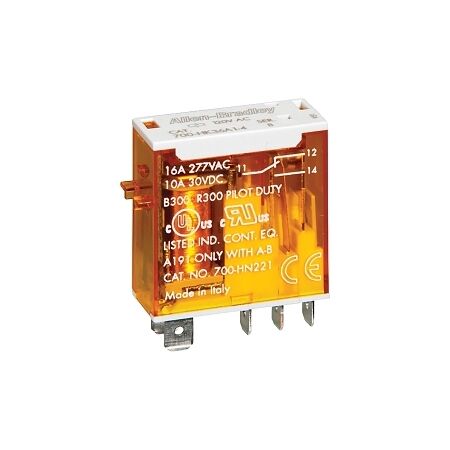

Product Name/Title: Allen-Bradley 700-HK General Purpose Slim Line Relay 16A 1 CO SPDT 24V AC Coil with Pilot Light
Brand: NHP
SKU: 700HK36A244
Alternatively Known As: Slim Line Relay, General Purpose Relay, 700-HK Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 12 A
- Control Supply Voltage: 24 V AC
- Electrical Life: 30000 cycles
- Mechanical Life: 10000000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 39.3mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 16A nominal current with 1 changeover contact.
- 24V AC coil with LED indication.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency and long operational life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HK General Purpose Slim Line Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
