Slim Line Relay 16A 1 CO SPDT | 120V AC Coil | Pilot Light by NHP
Slim line relay with 16A nominal current and 120V AC coil—ideal for industrial automation and control panels. Built for reliable switching, with LED indication and easy plug-in installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

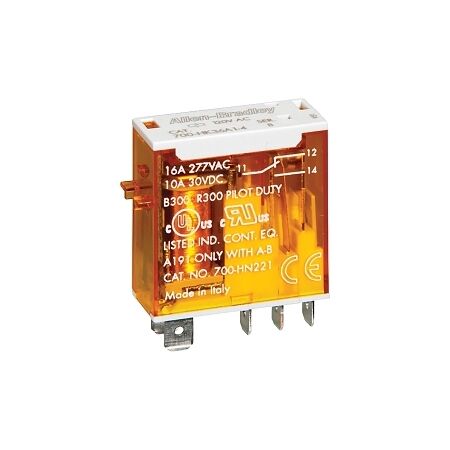

Product Name/Title: Allen-Bradley 700-HK General Purpose Slim Line Relay 16A 1 CO SPDT 120V AC Coil with Pilot Light
Brand: NHP
SKU: 700HK36A14
Alternatively Known As: Slim Line Relay, General Purpose Relay, 700-HK Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 4000 VA
- Rated Switching Power at AC-15 (230 V): 750 VA
- Breaking Capacity at DC-1 (30 V): 12 A
- Control Supply Voltage (AC 50/60 Hz): 120 V
- Electrical Life: 30,000 cycles
- Mechanical Life: 10,000,000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 70 °C
- Material Contact: Silver nickel
- Dimensions (H x L x W): 29mm x 39.3mm x 12.4mm
- Weight: 0.2 kg
Key Features
- 16A nominal current with 1 changeover contact.
- LED indication for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical devices.
Environmental Benefits
- Designed for long operational life with high mechanical and electrical endurance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HK General Purpose Slim Line Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
