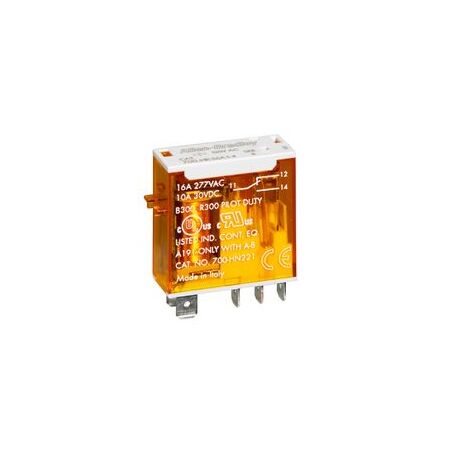

Slim Line Relay | 16A Contact Rating | SPDT Configuration | LED Pilot Light | by Allen-Bradley
The Slim Line Relay from Allen-Bradley features a robust 16A contact rating and a single pole double throw (SPDT) configuration, making it ideal for industrial control systems and automation equipment. With plug-in blade-style terminals and an on/off LED pilot light, this relay ensures reliable performance in electrical switching applications, while its slim design allows for easy installation in tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 16 A
- Coil Voltage: 6 V DC
- Contact Configuration: Single Pole Double Throw (SPDT)
- Frequency: 50/60 Hz
- Terminals: Plug-in blade-style
- Indicator: On/off LED pilot light
- Retainer Clip: Included with sockets
- Dimensions (H x L x W): 40mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Slim line design
- Plug-in blade-style terminals
- Retainer clip with sockets
- On/off indicator
- LED pilot light
- Single pole double throw (SPDT) contact configuration
- 16 A contact rating
- Operates at 50/60 Hz frequency
- 6 V DC coil voltage
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED pilot light reduces energy consumption compared to traditional indicator lights
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HK36Z064 Slim Line Relay is available for immediate purchase, ideal for industrial and automation control applications.
