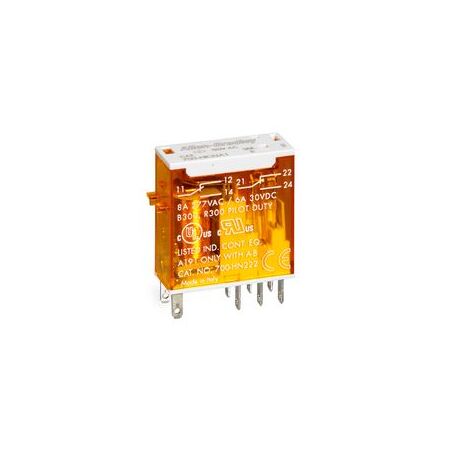

Slim Line Relay 24V DC | DPDT Configuration | Plug-in Terminals | LED Indicator | by Allen-Bradley
The Slim Line Relay 24V DC is designed for efficient control in industrial automation applications. Featuring a double pole double throw (DPDT) configuration and plug-in blade-style terminals, it ensures easy wiring and secure installation. With an 8 A contact rating and an LED pilot light for operational status, this relay is perfect for machinery control panels and electrical switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 8 A
- Frequency: 50/60 Hz
- Coil Voltage: 24 V DC
- Contact Configuration: Double Pole Double Throw (DPDT)
- Terminals: Plug-in blade-style
- Manual Operator: Yes
- Indicator: On/Off LED pilot light
- Retainer Clip: Included with sockets
- Dimensions (H x L x W): 35mm x 50mm x 22mm
- Weight: 0.1 kg
Key Features
- Slim line design for space-saving installation
- Plug-in blade-style terminals for easy wiring
- Retainer clip with sockets for secure mounting
- On/off indicator for operational status
- Double pole double throw (DPDT) configuration
- Manual operator for manual control
- LED pilot light for visual indication
- 8 A contact rating suitable for moderate loads
- Operates at 24 V DC, 50/60 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
- Machinery control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- LED pilot light consumes low power compared to traditional indicators
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HKX2Z2434 Slim Line Relay is available for immediate purchase, ideal for industrial and automation control applications.
