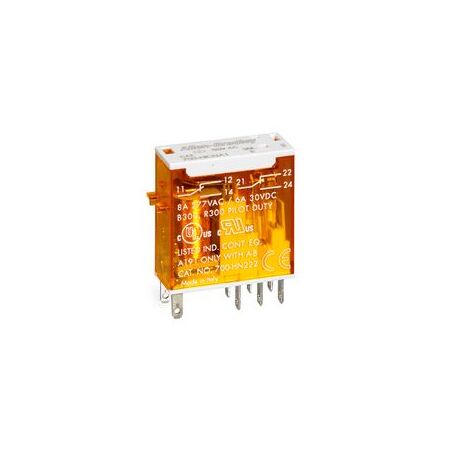

Slim Line Relay 24 VAC DPDT | 8 A Contact Rating | Plug-in Blade Terminals | by Allen-Bradley
The Slim Line Relay 24 VAC DPDT is designed for efficient electrical switching in industrial control systems. With an 8 A contact rating and plug-in blade-style terminals, it ensures easy wiring and secure mounting. Ideal for automation equipment and electrical switching applications, this relay features an on/off status indicator for operational clarity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 8 A
- Voltage: 24 VAC
- Frequency: 50/60 Hz
- Contact Configuration: Double Pole Double Throw (DPDT)
- Terminal Type: Plug-in blade-style
- Mounting Style: Open style, mountable
- Indicator: On/off status indicator
- Retainer Clip: Included with sockets
- Dimensions (H x L x W): 50mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Slim line design for space-saving installation
- Plug-in blade-style terminals for easy wiring
- Retainer clip with sockets for secure mounting
- On/off indicator for operational status
- Double pole double throw (DPDT) configuration
- 8 A contact rating suitable for various loads
- Operates at 50/60 Hz frequency
- Open style mountable relay
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
- Mountable relay installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Efficient electrical switching helps reduce energy loss
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HKX2A24 Slim Line Relay is available for immediate purchase, ideal for industrial and automation control applications.
