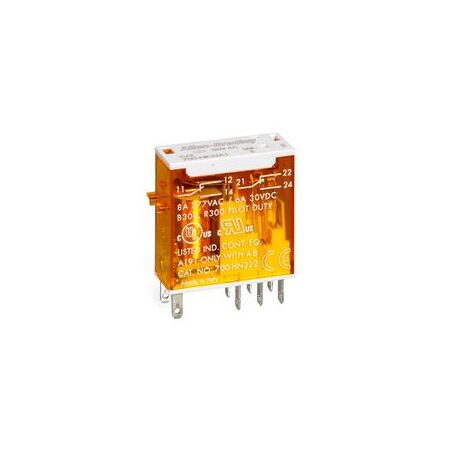

Slim Line Relay | 8A Contact Rating | DPDT Configuration | LED Pilot Light | by Allen-Bradley
The Slim Line Relay by Allen-Bradley features an 8A contact rating and a double pole double throw (DPDT) configuration, making it ideal for industrial control systems and automation equipment. With plug-in blade-style terminals and an on/off LED pilot light, this relay ensures reliable performance in electrical switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 8 A
- Frequency: 50/60 Hz
- Coil Voltage: 12 V AC
- Contact Configuration: Double Pole Double Throw (DPDT)
- Terminals: Plug-in blade-style
- Indicator: On/off LED pilot light
- Includes retainer clip with sockets
- Dimensions (H x L x W): 40mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Slim line design
- Plug-in blade-style terminals
- Retainer clip with sockets
- On/off indicator
- LED pilot light
- Double pole double throw configuration
- 8 A contact rating
- Operates at 50/60 Hz and 12 V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED pilot light reduces energy consumption compared to traditional indicator lamps
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HK32A124 Slim Line Relay is available for immediate purchase, ideal for industrial and automation control applications.
