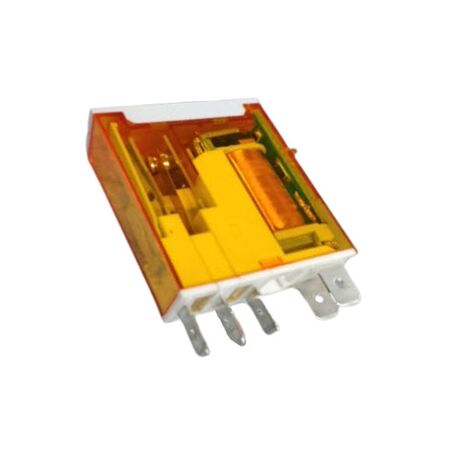

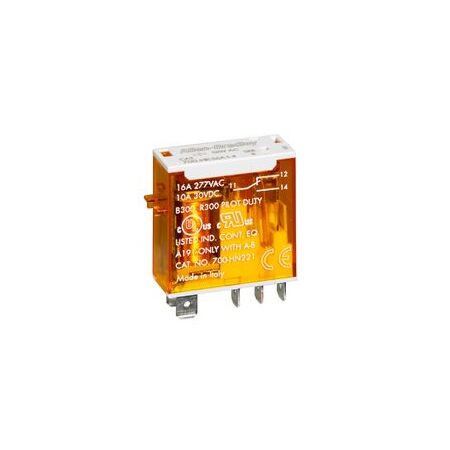

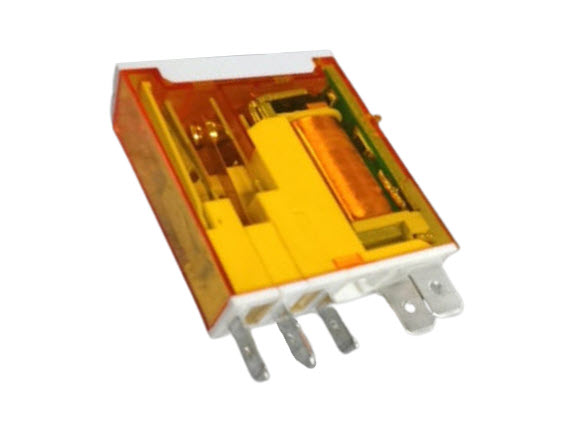

Slim Line Relay with LED Indicator | 16A Contact Rating | SPDT Configuration | by Allen-Bradley
The Slim Line Relay with LED Indicator is designed for efficient industrial control systems, featuring a 16A contact rating and SPDT configuration. Ideal for automation equipment and electrical switching applications, this relay offers easy plug-in blade-style terminals for quick wiring and a built-in LED pilot light for status monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 16 A
- Voltage: 120 VAC
- Frequency: 50/60 Hz
- Contact Type: Single Pole Double Throw (SPDT)
- Terminals: Plug-in blade style
- Indicator: LED pilot light
- Mounting: Open style, mountable
- Retainer Clip: Included with sockets
- Dimensions (H x L x W): 35mm x 50mm x 22mm
- Weight: 0.1 kg
Key Features
- Slim line design for space-saving installation
- Plug-in blade-style terminals for easy wiring
- Retainer clip with sockets for secure mounting
- On/off LED indicator for status monitoring
- Single pole double throw (SPDT) contact configuration
- 16 A contact rating at 120 VAC, 50/60 Hz
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
- Machinery control panels
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED pilot light reduces energy consumption compared to traditional indicators
- Durable design extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HKX6A14 Slim Line Relay is available for immediate purchase, ideal for industrial and automation control applications.
