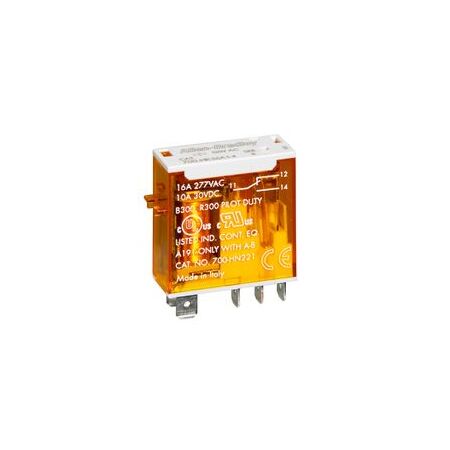

Slim Line Relay with LED Pilot Light | 16A SPDT Contact | 48V DC | by Allen-Bradley
The Slim Line Relay with LED Pilot Light is designed for efficient control in industrial automation. Featuring a 16A SPDT contact configuration and operating at 48V DC, this relay ensures reliable performance in various electrical switching applications. Its space-saving design and plug-in blade-style terminals make installation quick and easy, making it ideal for qualified electricians looking to enhance their control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 16 A
- Contact Configuration: Single Pole Double Throw (SPDT)
- Coil Voltage: 48 V DC
- Frequency: 50/60 Hz
- Terminal Type: Plug-in blade-style
- Indicator: LED pilot light
- Mounting: Retainer clip with sockets
- Dimensions (H x L x W): 35mm x 50mm x 22mm
- Weight: 0.1 kg
Key Features
- Slim line design for space-saving installation
- Plug-in blade-style terminals for easy wiring
- Retainer clip with sockets for secure mounting
- On/off indicator with LED pilot light
- Single pole double throw (SPDT) contact configuration
- 16 A contact rating suitable for various loads
- Operates at 48 V DC, 50/60 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper wiring and safety compliance.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient relay operation reduces power consumption in control circuits
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HK36Z484 Slim Line Relay is available now for immediate purchase, ideal for industrial and automation control applications.
